Home >> Subaru >> 2006 >> Outback XT, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission And Differential 5MT >> General Description >> Components With Torque Specifications >> Main Shaft For Single-Range

Main Shaft For Single-Range

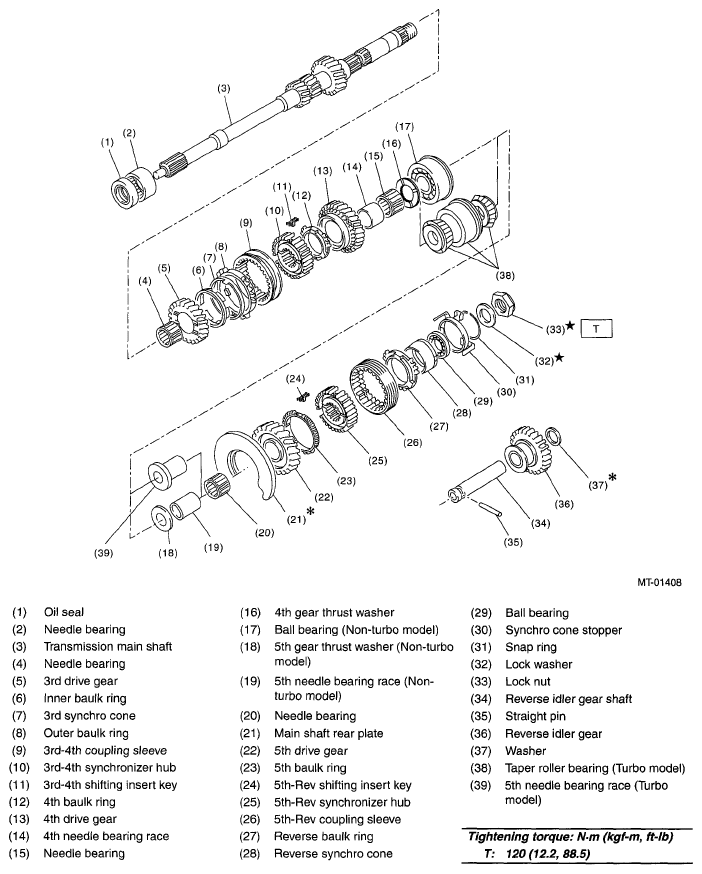

Fig 1: Main Shaft For Single-Range Replacement Components With Torque Specifications

G05019859
