Drive Pinion Assembly

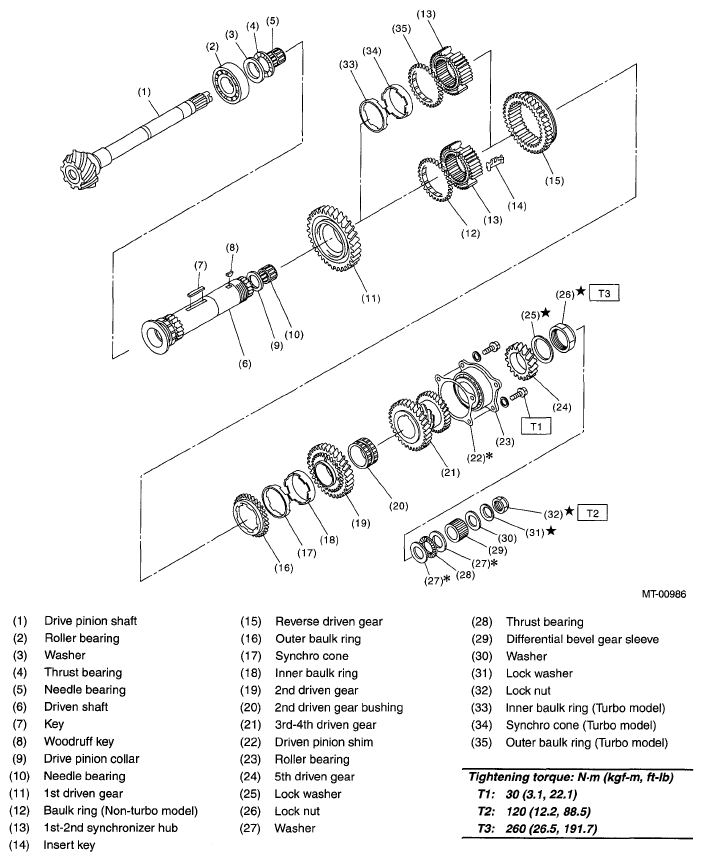

Fig 1: Drive Pinion Assembly Replacement Components With Torque Specifications

G05019858
