Differential Case Assembly

Loosen the twelve bolts and remove hypoid driven gear.

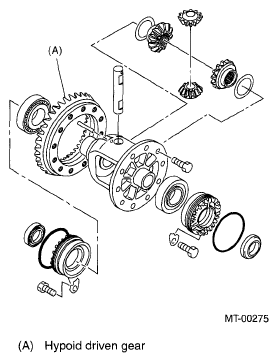

Fig 1: Identifying Hypoid Driven Gear Components
Drive out the straight pin from differential assembly toward hypoid driven gear side.
ST 899904100 REMOVER

Fig 2: Removing Straight Pin From Differential Assembly Using Remover ST 899904100
Pull out the pinion shaft, and remove the differential bevel pinion, bevel gear and washer.

Fig 3: Identifying Pinion Shaft, Bevel Pinion, Bevel Gear And Washer
Using the ST, remove the roller bearing.
ST 899524100 PULLER SET

Fig 4: Removing Roller Bearing Using Puller Set ST 899524100
