Section 52 (Differentials)
>>
General Description
>>
Components With Torque Specifications
>>
Rear Differential Mounting System
Rear Differential Mounting System
WARNING:
This page is about a different car, the 2006 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

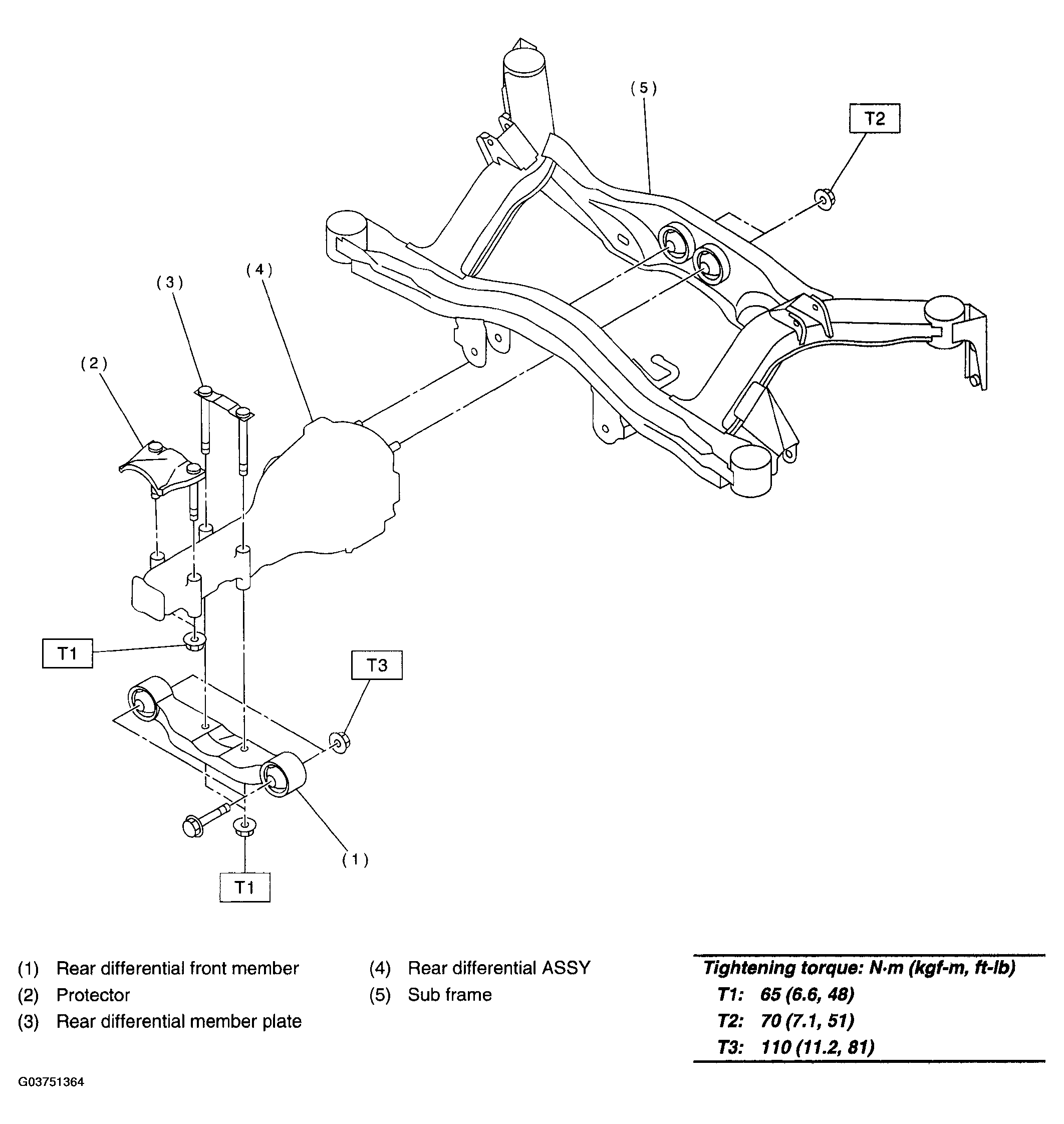

Fig 1: Rear Differential Mounting System With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
