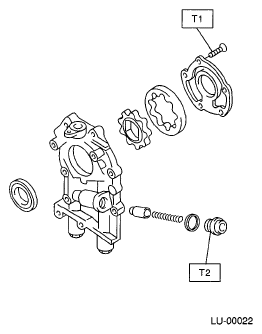

Oil Pump: Assembly
- Using the ST, install the front oil seal.
ST 499587100 OIL SEAL INSTALLER
NOTE: Use a new oil seal. - Apply a coat of engine oil to inner and outer rotors.
- Assemble the inner and outer rotors in their original positions.
- Assemble the oil relief valve and install relief valve spring and plug.NOTE: Use a new gasket.
- Install the oil pump cover.
Tightening torque:
T1: 5.4 N.m (0.55 kgf-m, 4.0 ft-lb)
T2:44 N.m (4.5 kgf-m, 32.5 ft-lb)
