Home >> Subaru >> 2006 >> Outback XT, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication (H4DOTC) >> General Description >> Components With Torque Specifications

Components With Torque Specifications

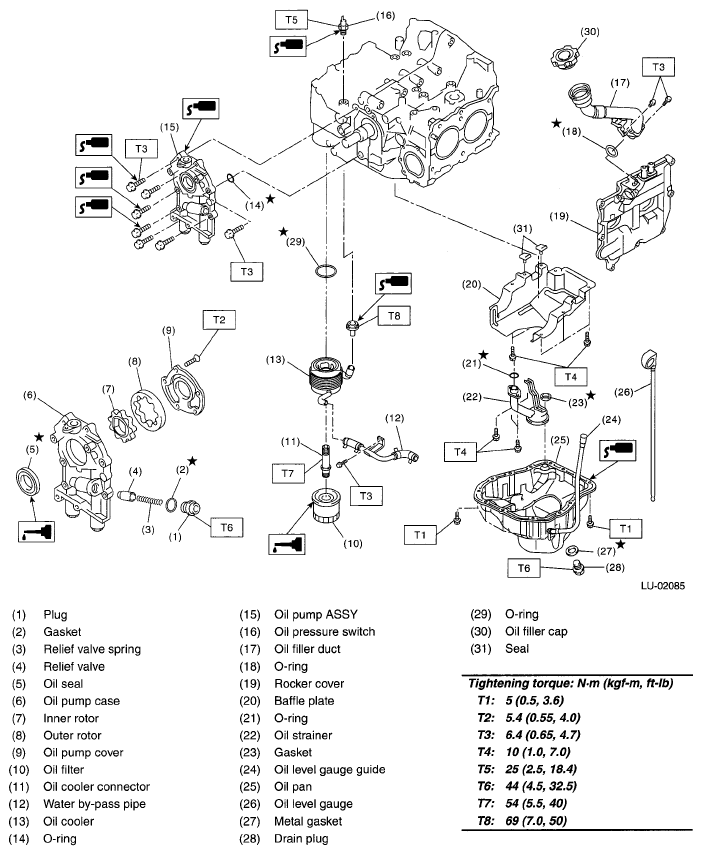

Fig 1: Lubrication System Component And Fastener Tightening Torque Specifications Table

G05021507
