DTC C0072 Yaw Rate Sensor Reference

DTC DETECTING CONDITION:

Defective yaw rate sensor

TROUBLE SYMPTOM:

VDC does not operate.

WIRING DIAGRAM:

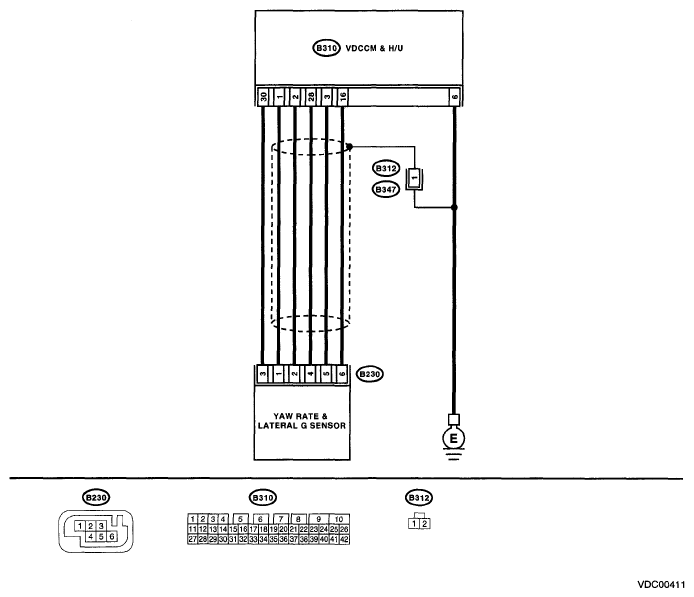

Fig 1: Yaw Rate Sensor Reference - Wiring Diagram
G05020323
DIAGNOSIS PROCEDURE

Step Check Yes No
1 CHECK POWER SUPPLY FOR YAW RATE & LATERAL G SENSOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from yaw rate & lateral G sensor.
  3. Turn the ignition switch to ON.
  4. Measure the voltage between yaw rate & lateral G sensor and chassis ground.

    Connector & terminal

    (B230) No. 3 (+) - Chassis ground (-):

 Is the voltage 10 - 15 V? Go to step 3.  Go to step 2.
2 CHECK OUTPUT VOLTAGE OF VDCCM&H/U.
Measure the voltage between VDCCM&H/U and chassis ground.
Connector & terminal
(B310) No. 30 (+) - Chassis ground (-): 		 Is the voltage 10 - 15 V? Repair the harness between yaw rate & lateral G sensor and VDCCM&H/U. Go to step 5.
3 CHECK YAW RATE & LATERAL G SENSOR GROUND CIRCUIT.
Measure the resistance between the yaw rate & lateral G sensor and chassis ground.
Connector & terminal
(B230) No. 6 - Chassis ground: 		 Is the resistance less than 0.5 Ω? Go to step 6.  Go to step 4.
4 CHECK THE VDCCM&H/U GROUND CIRCUIT.
Measure the resistance between VDCCM&H/U and chassis ground.
Connector & terminal
(B310) No. 16 - Chassis ground: 		 Is the resistance less than 0.5 Ω? Repair the harness between yaw rate & lateral G sensor and VDCCM&H/U. Go to step 5.
5 CHECK POOR CONTACT IN CONNECTORS.  Is there poor contact in connector? Correct or replace the connector. Go to step 9.
6 CHECK HARNESS OF YAW RATE & LATERAL G SENSOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from the VDCCM&H/U.
  3. Measure the resistance between VDCCM&H/U and yaw rate & lateral G sensor.

    Connector & terminal

    (B310) No. 1 - (B230) No. 1:

 Is the resistance less than 0.5 Ω? Go to step 7.  Repair the harness between yaw rate & lateral G sensor and VDCCM&H/U.
7 CHECK GROUND SHORT CIRCUIT OF HARNESS.
Measure the resistance between VDCCM&H/U and chassis ground.
Connector & terminal
(B310) No. 1 - Chassis ground: 		 Is the resistance more than 1 MΩ? Go to step 8.  Repair the harness between yaw rate & lateral G sensor and VDCCM&H/U.
8 CHECK YAW RATE & LATERAL G SENSOR.
  1. Turn the ignition switch to OFF.
  2. Install the yaw rate & lateral G sensor to the body.
  3. Connect all the connectors.
  4. Turn the ignition switch to ON.
  5. Measure the voltage between VDCCM&H/U connector terminals.

    Connector & terminal

    (B310) No. 1 (+) - (B310) No. 16 (-):

 Is the voltage 2.1 - 2.9 V? Go to step 9.  Replace the yaw rate & lateral G sensor. < Ref. to YAW RATE AND LATERAL G SENSOR . >
9 CHECK THE VDCCM&H/U.
  1. Turn the ignition switch to OFF.
  2. Connect all the connectors.
  3. Erase the memory.
  4. Perform the Inspection Mode.
  5. Read the DTC.
 Is the same DTC displayed? Replace the VDCCM&H/U. < Ref. to VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U) . > Go to step 10.
10 CHECK OTHER DTC DETECTION.  Is any other DTC displayed? Perform the diagnosis according to DTC. Temporary poor contact occurs.
