Components With Torque Specifications: Generator

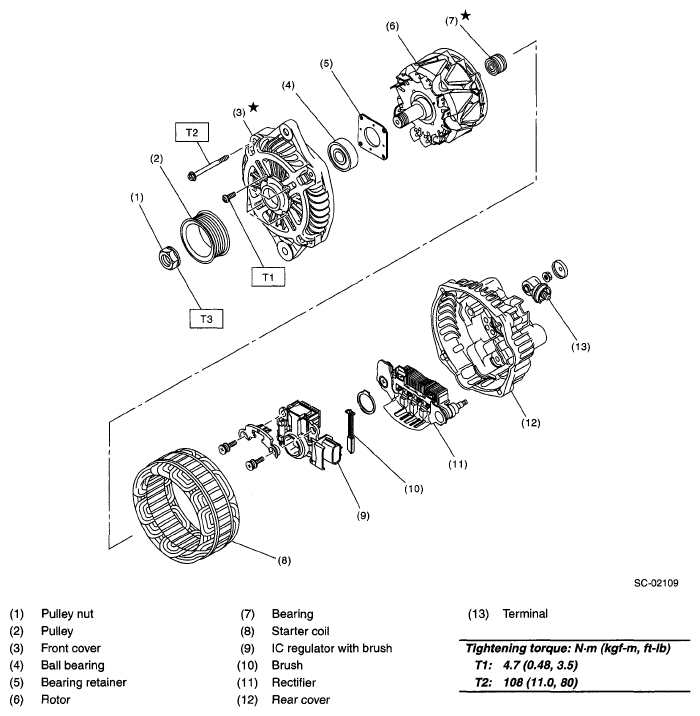

Fig 1: Generator Components With Torque Specifications

G05017376
