Parking Pawl: Installation

  1. Set the transmission to the N range.
  2. Install the parking pawl, parking pawl shaft and return spring.
    Fig 1: Identifying Parking Pawl, Parking Pawl Shaft And Return Spring
    G05022327
  3. Install the parking support actuator.

    Tightening torque:

    10±2 N.m(1.0±0.2 kgf-m, 7.4±1.5 ft-lb)

    4. Fig 2: Identifying Parking Support Actuator
    G05022326
  4. Using the ST, tighten the bolts which tightened in step  3) with specified angle.

    Tightening angle: 17°±2°

    ST 18854AA000 ANGLE GAUGE

    NOTE: Do not use extension as much as possible.
    Fig 3: Tightening Bolts
    G05022330
    Fig 4: Tightening Bolts Angle
    G05022331
  5. Make sure that the return spring is sticking out of the parking pole hole.

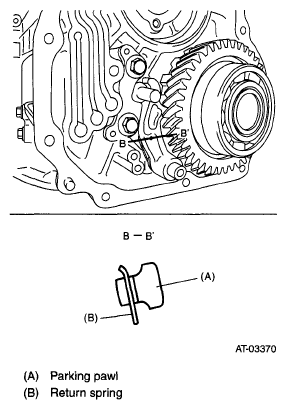

    Fig 5: Identifying Return Spring And Parking Pole Hole
    G05022332
  6. Install the front vehicle speed sensor. < Ref. to INSTALLATION , Front Vehicle Speed Sensor. >
  7. Install the center differential carrier. < Ref. to INSTALLATION , Center Differential Carrier. >
  8. Install the extension case. < Ref. to INSTALLATION , Extension Case. >
  9. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
