Transfer Case, Extension Case & Reduction Gear

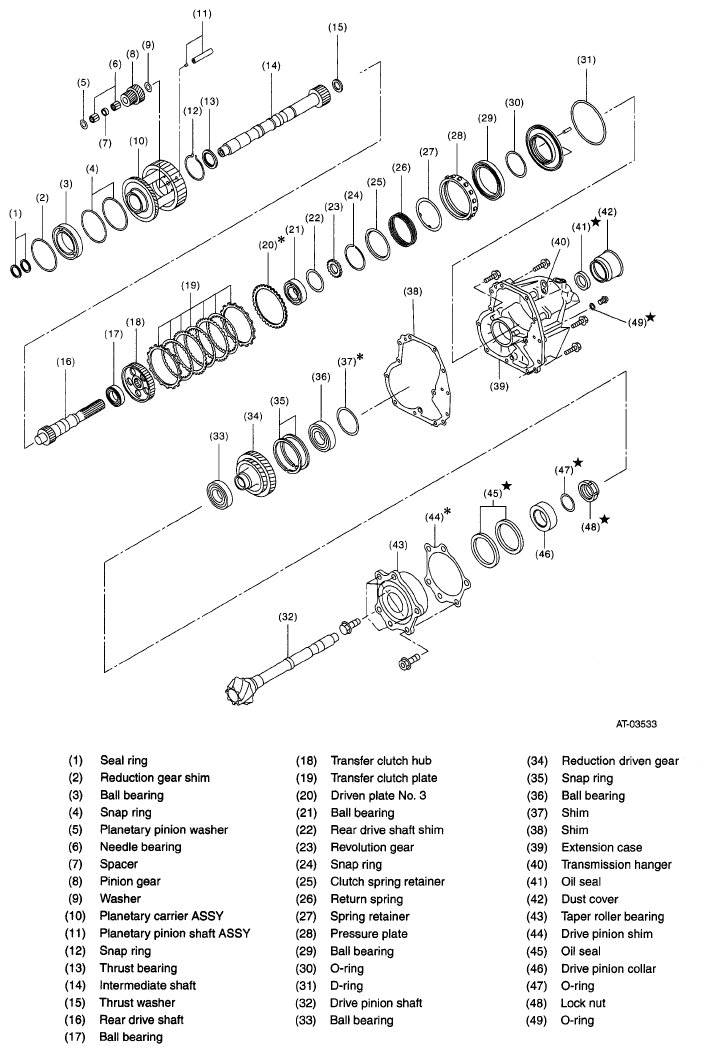

Fig 1: Identifying Transfer Case, Extension Case & Reduction Gear Components

G05022135
