Automatic Transmission (Diagnostics) 5AT: Electrical Component Location: Location: Sensor

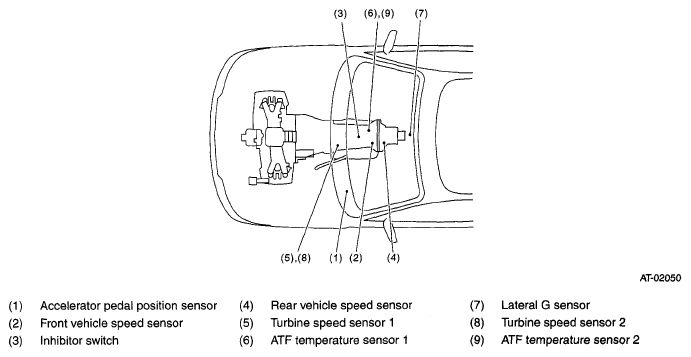

Fig 1: Identifying Electrical Components Location - Sensor (1 Of 2)
G05019807

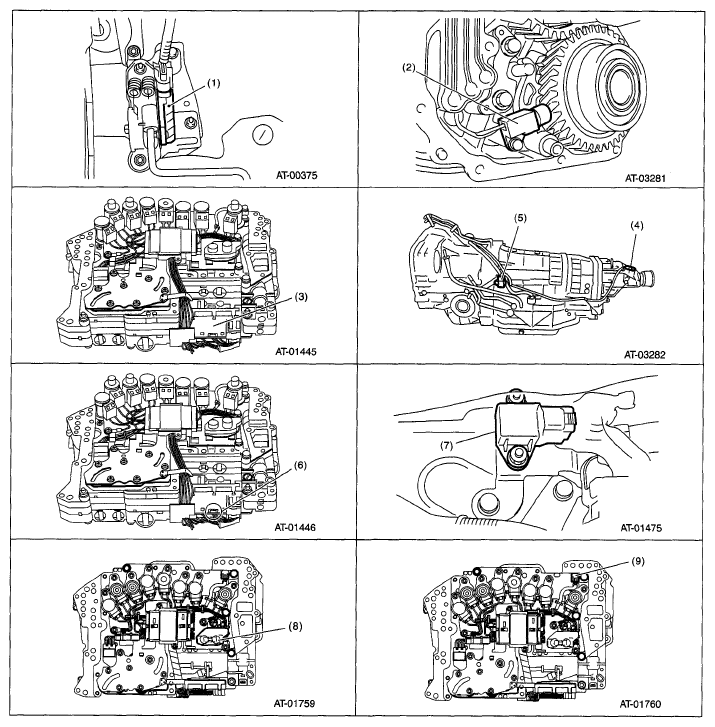

Fig 2: Identifying Electrical Components Location - Sensor (2 Of 2)
G05019808
