Front Crossmember Support Plate: Removal

1. Lift-up the vehicle.
2. Remove the front under cover. < Ref. to REMOVAL , Front Under Cover. >
3. Remove the bolt and remove front crossmember support plate.

• Large type

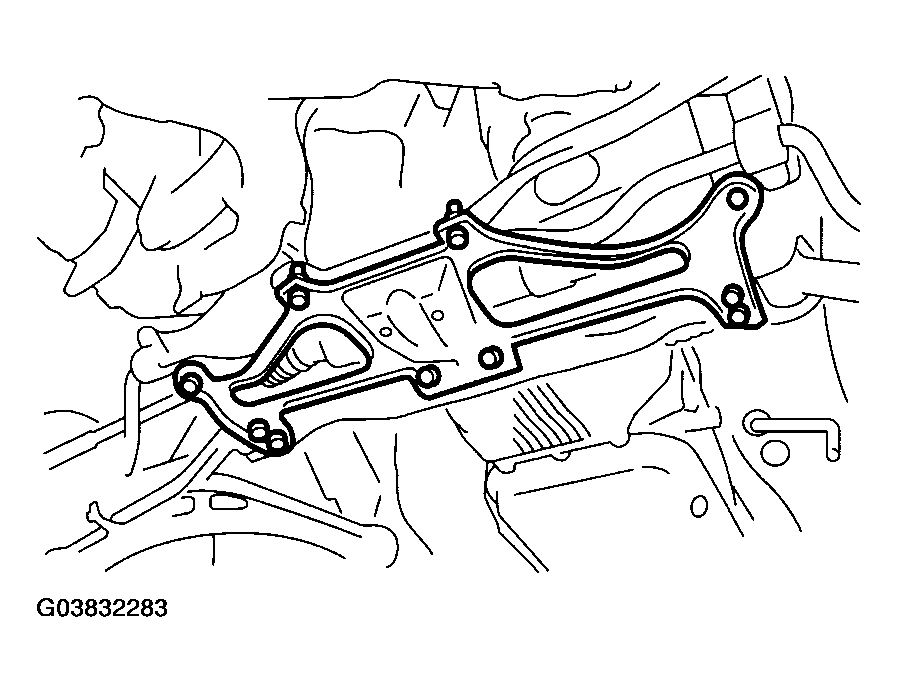

  Fig 1: Identifying Crossmember - Large

  Courtesy of SUBARU OF AMERICA, INC.
• Small type

Fig 2: Identifying Crossmember - Small

Courtesy of SUBARU OF AMERICA, INC.
