Front Ball Joint: Removal

  1. Lift-up the vehicle and remove the front wheels.
  2. Remove the both sides of stabilizer bracket.

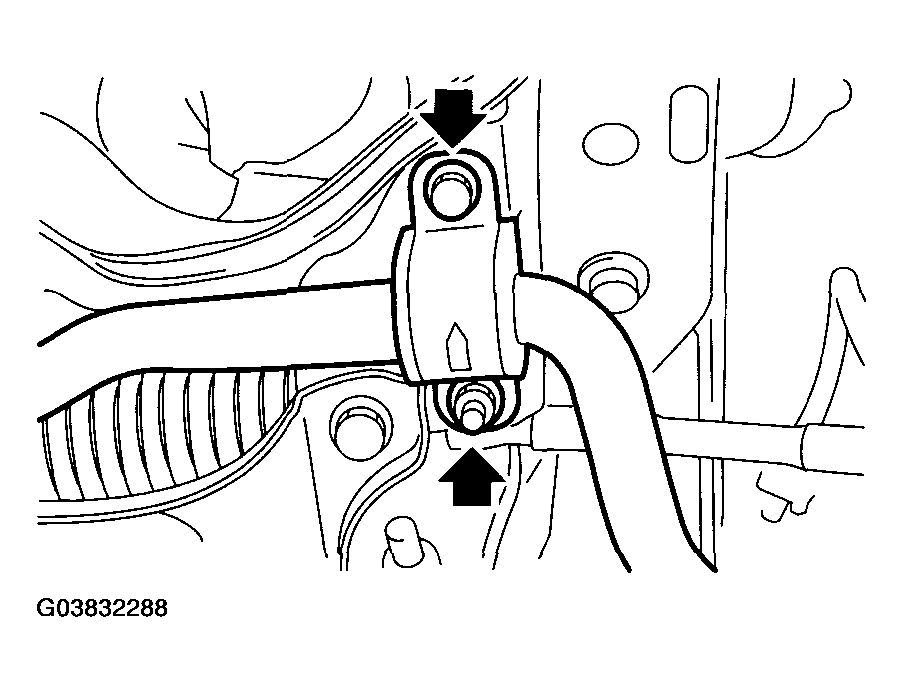

    Fig 1: Removing Both Sides Of Stabilizer Bracket
    G03832288Courtesy of SUBARU OF AMERICA, INC.
  3. Pull out the pin from ball stud, remove the castle nut, and extract the ball stud from front arm.
  4. Remove the bolt installing ball joint to housing.

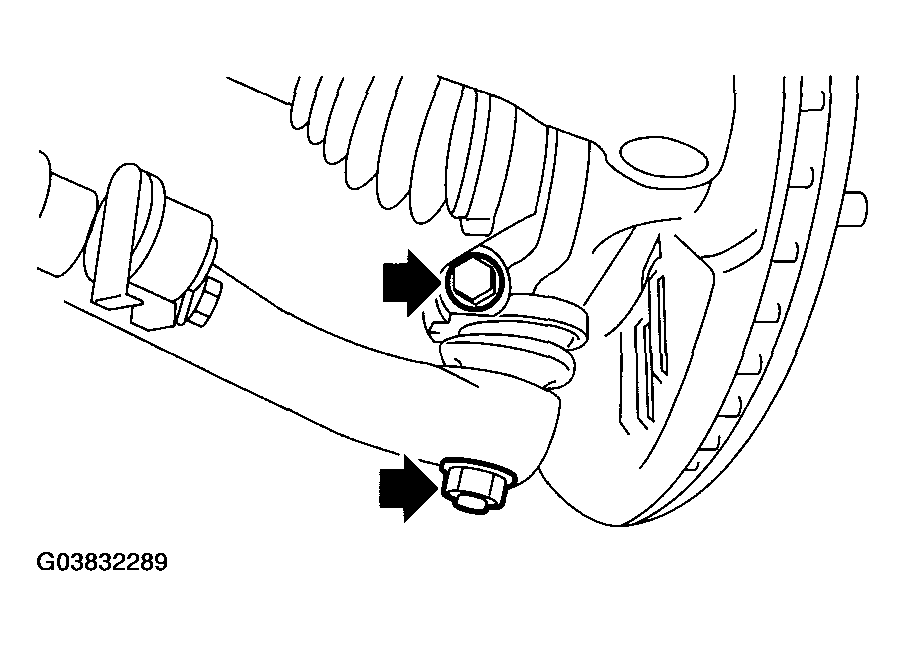

    Fig 2: Removing Bolt Installing Ball Joint To Housing
    G03832289Courtesy of SUBARU OF AMERICA, INC.
  5. Extract the ball joint from housing.
