Home >> Subaru >> 2006 >> Outback R >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication (H6DO) >> General Description >> Components With Torque Specifications

Components With Torque Specifications

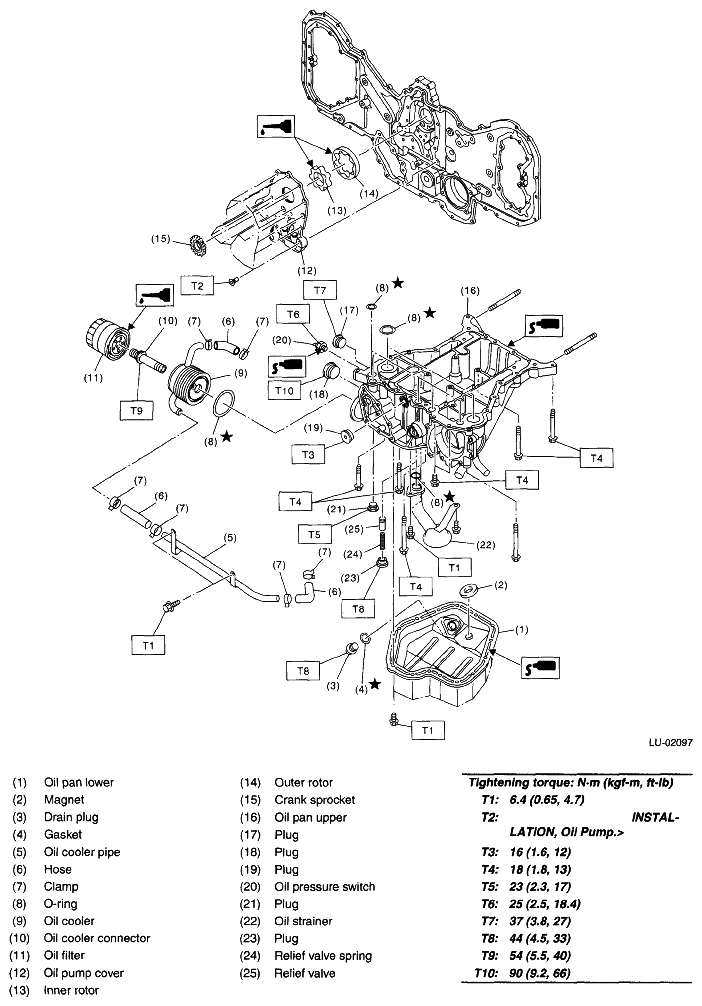

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications

G05018918
