Power Assisted System

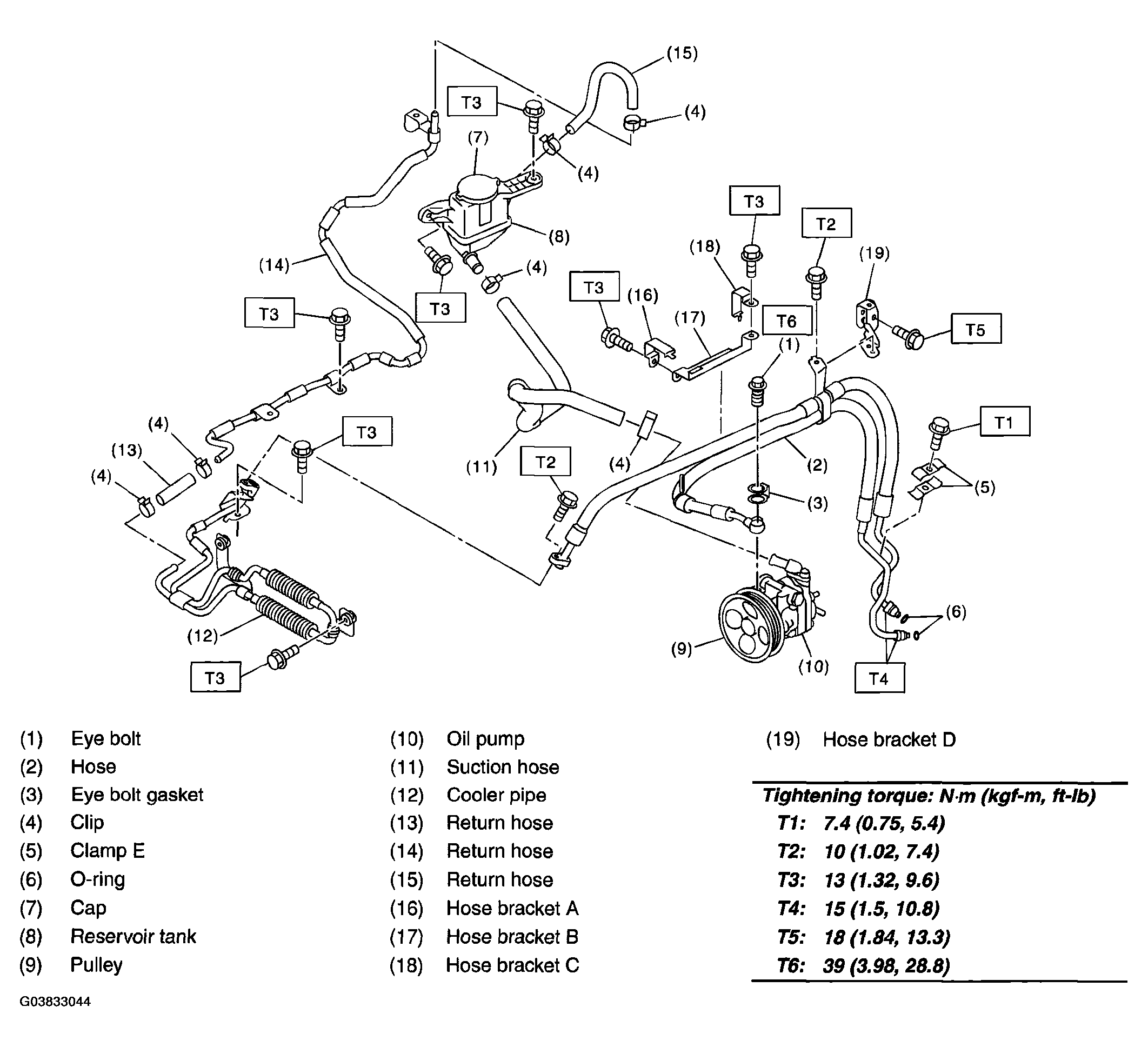

Hose and tank (H4 model)

Fig 1: Power Assisted System Hose And Tank With Torque Specifications (H4 Model)
Courtesy of SUBARU OF AMERICA, INC.

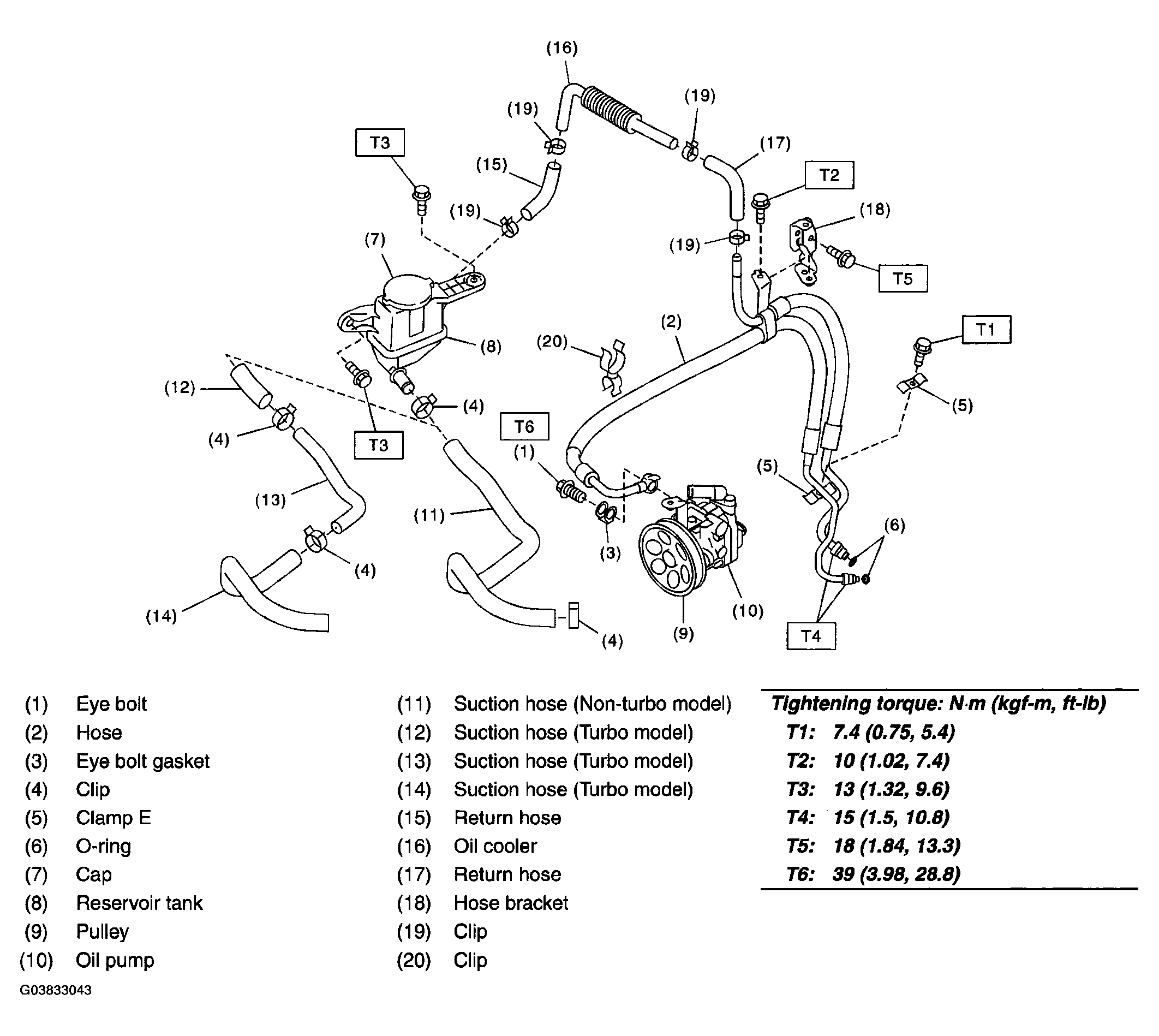

Hose and tank (H6 model)

Fig 2: Power Assisted System Hose And Tank With Torque Specifications (H6 Model)
Courtesy of SUBARU OF AMERICA, INC.

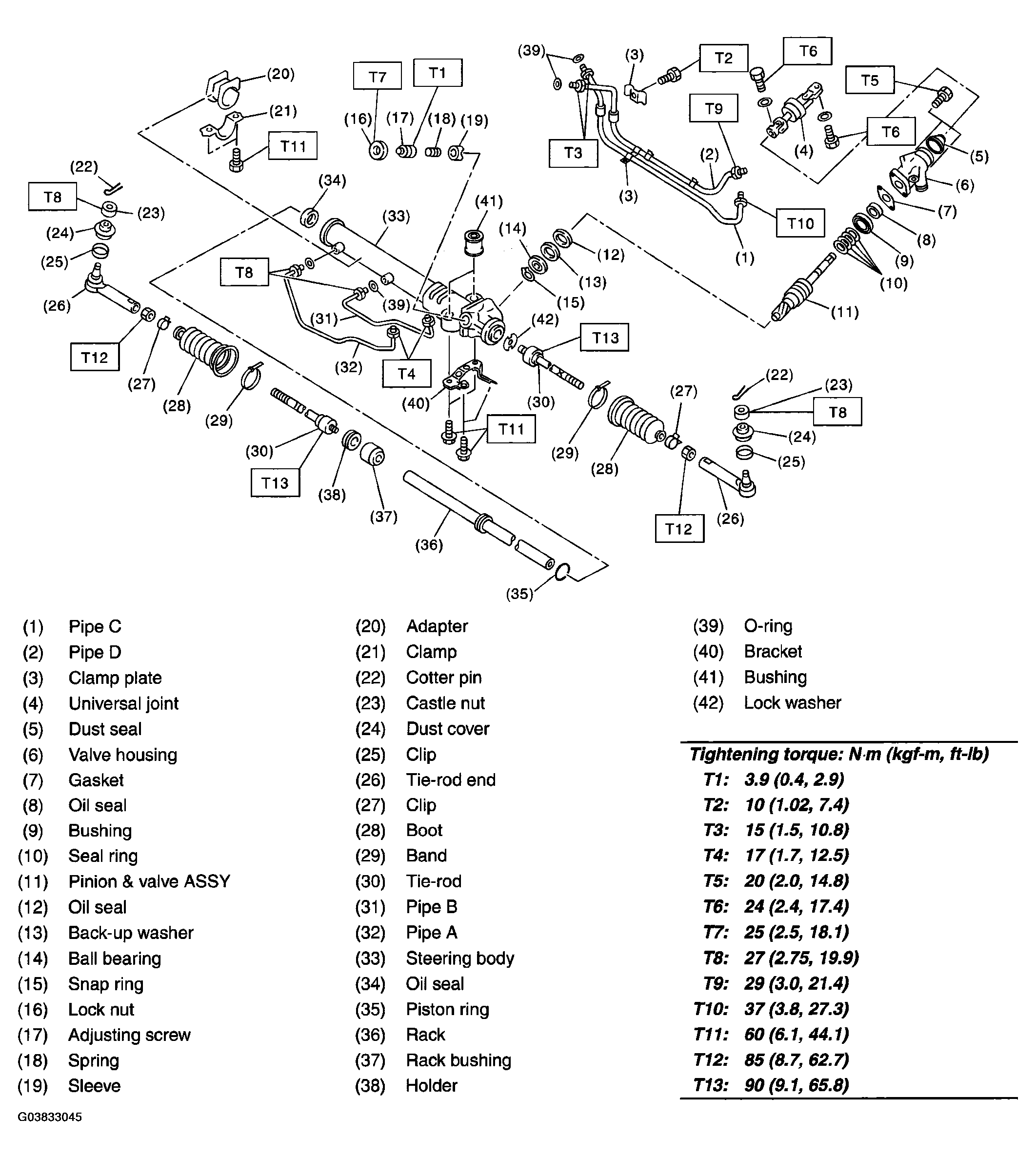

Gearbox

Fig 3: Gearbox With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
