LEMON Manuals
: Even more car manuals for everyone
Home
>>
Subaru
>>
2006
>>
Outback R
>>
Repair and Diagnosis (Single Page)
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
>>
General Description
>>
Components With Torque Specifications
>>
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

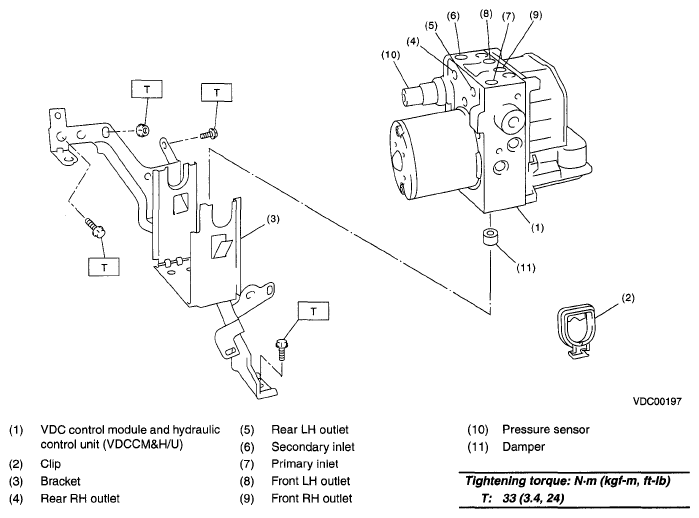

Fig 1: VDC Control Module And Hydraulic Control Unit (VDCCM&H/U) Replacement Components With Torque Specifications
