General Description
>>
Components With Torque Specifications
>>
Front Seat Belt
Front Seat Belt

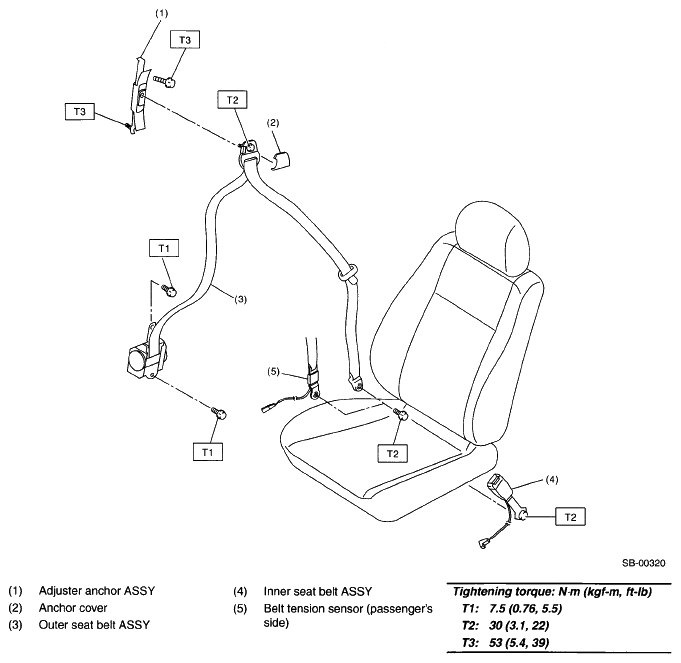

Fig 1: Front Seat Belt Replacement Components With Torque Specifications
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5(0.76,5.5)
T2: 30(3.1,22)
T3: 53(5.4,39)
