Engine Controls - Engine (Diagnostics) (STI): Electrical Component Location: Location: Engine

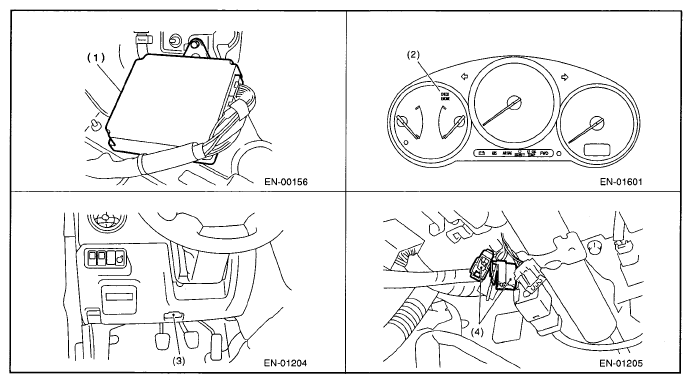

Control module

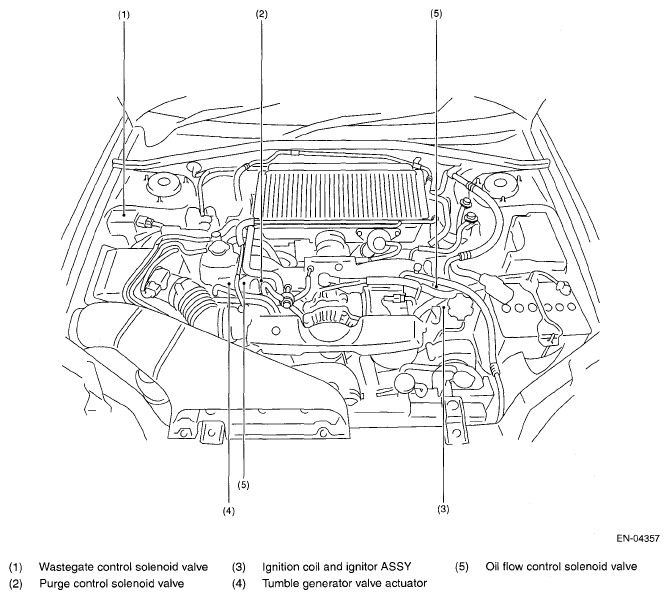

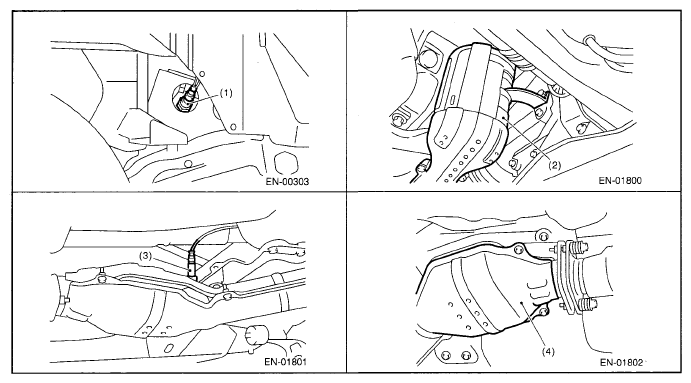

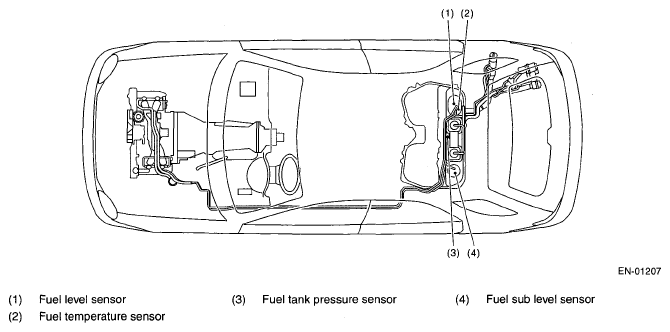

Fig 1: Identifying Electrical Component Location (1 Of 16)

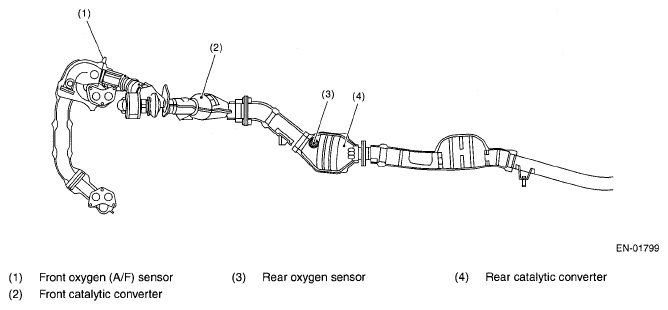

Fig 2: Identifying Electrical Component Location (2 Of 16)

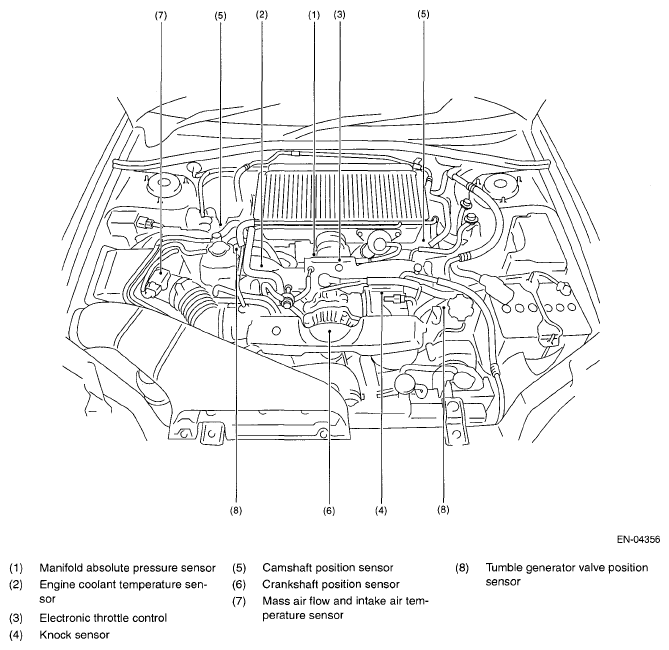

Sensor

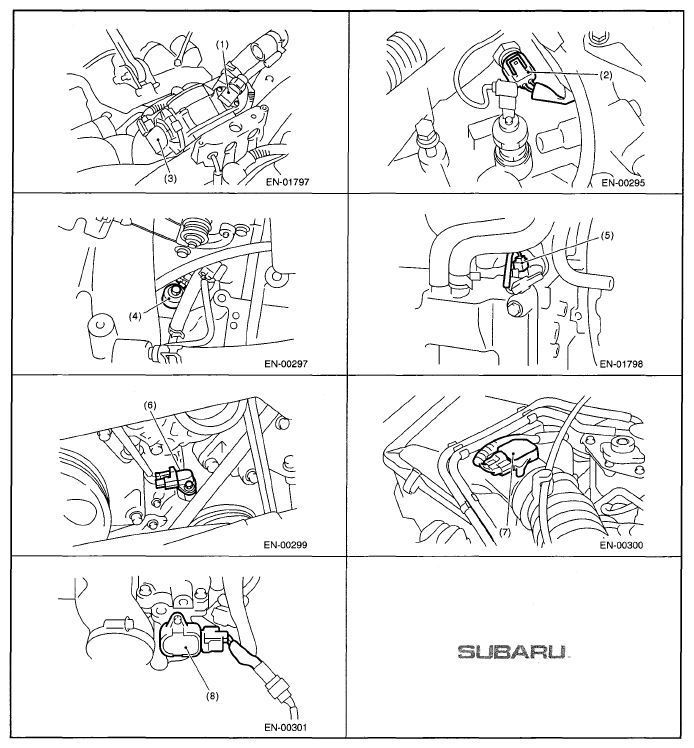

Fig 3: Identifying Electrical Component Location (3 Of 16)

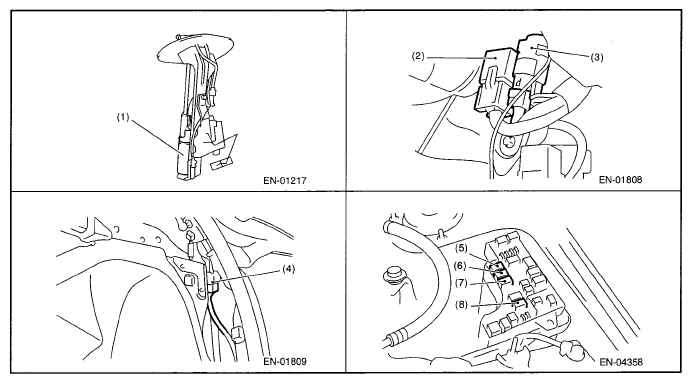

Fig 4: Identifying Electrical Component Location (4 Of 16)

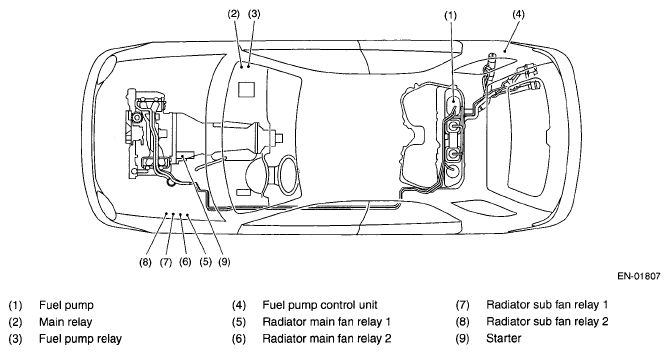

Fig 5: Identifying Electrical Component Location (5 Of 16)

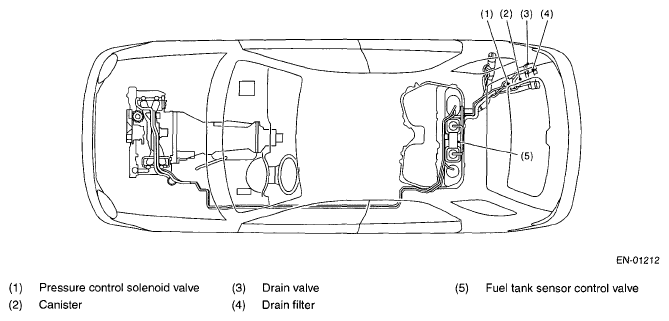

Fig 6: Identifying Electrical Component Location (6 Of 16)

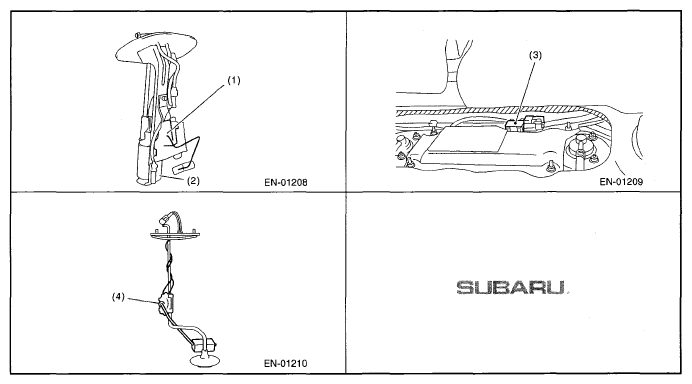

Fig 7: Identifying Electrical Component Location (7 Of 16)

For component description, see Fig 7.

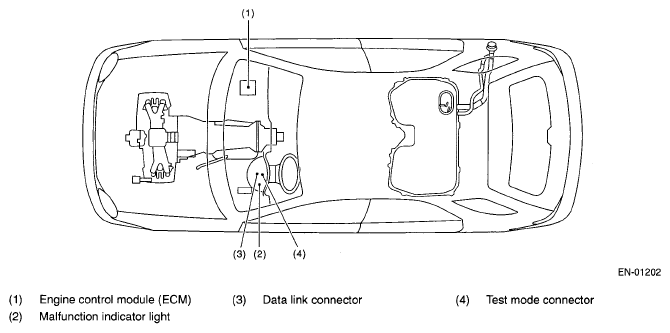

Fig 8: Identifying Electrical Component Location (8 Of 16)

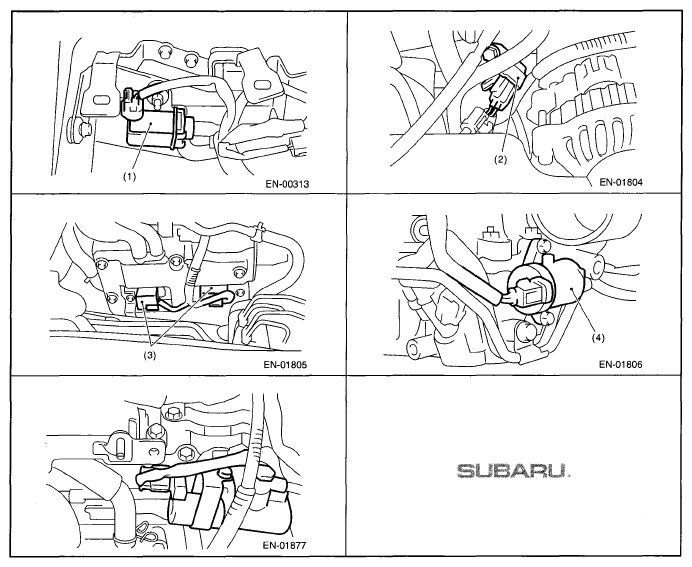

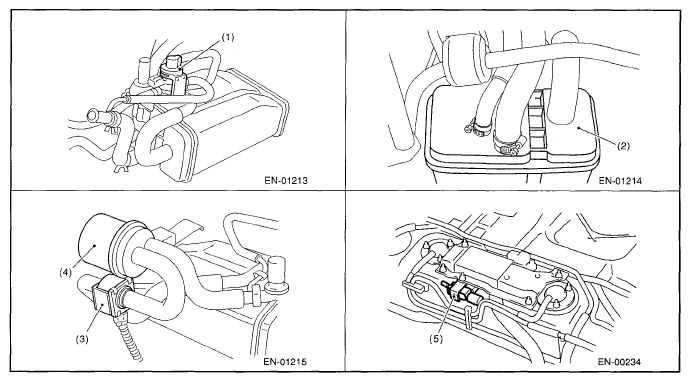

Solenoid Valve, Actuator, Emission Control System Parts and Ignition System Parts

Fig 9: Identifying Electrical Component Location (9 Of 16)

For component description, see Fig 8.

Fig 10: Identifying Electrical Component Location (10 Of 16)

Fig 11: Identifying Electrical Component Location (11 Of 16)

For component description, see Fig 10.

Fig 12: Identifying Electrical Component Location (12 Of 16)

Fig 13: Identifying Electrical Component Location (13 Of 16)

For component description, see Fig 12.

Fig 14: Identifying Electrical Component Location (14 Of 16)

Fig 15: Identifying Electrical Component Location (15 Of 16)

For component description, see Fig 14.
