Drivetrain System
>>
General Description
>>
Components With Torque Specifications
>>
Front Axle
Front Axle
EBJ+PTJ type

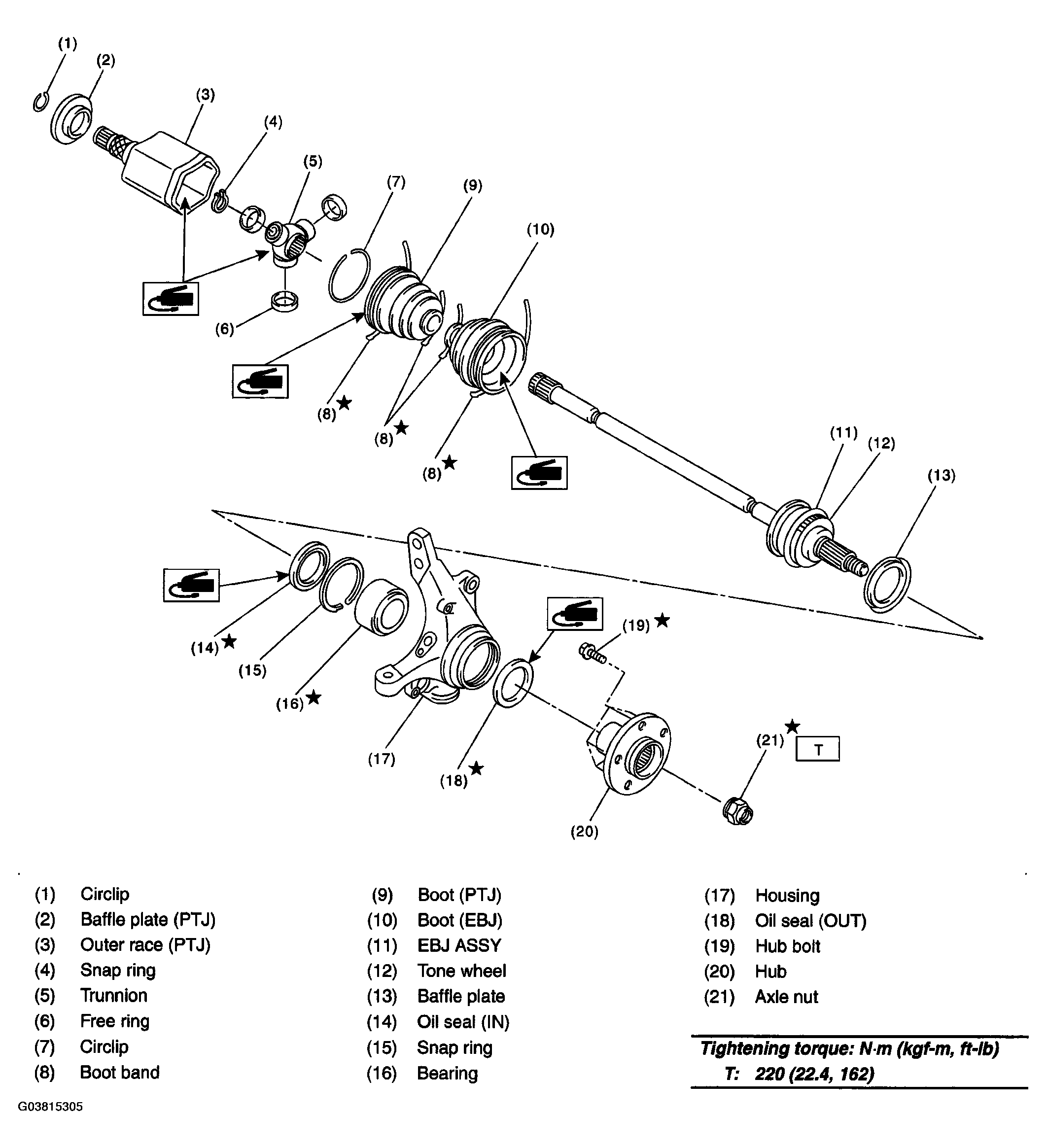

Fig 1: Exploded View Of Front Axle Shaft (EBJ+PTJ Type) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
BJ+DOJ type

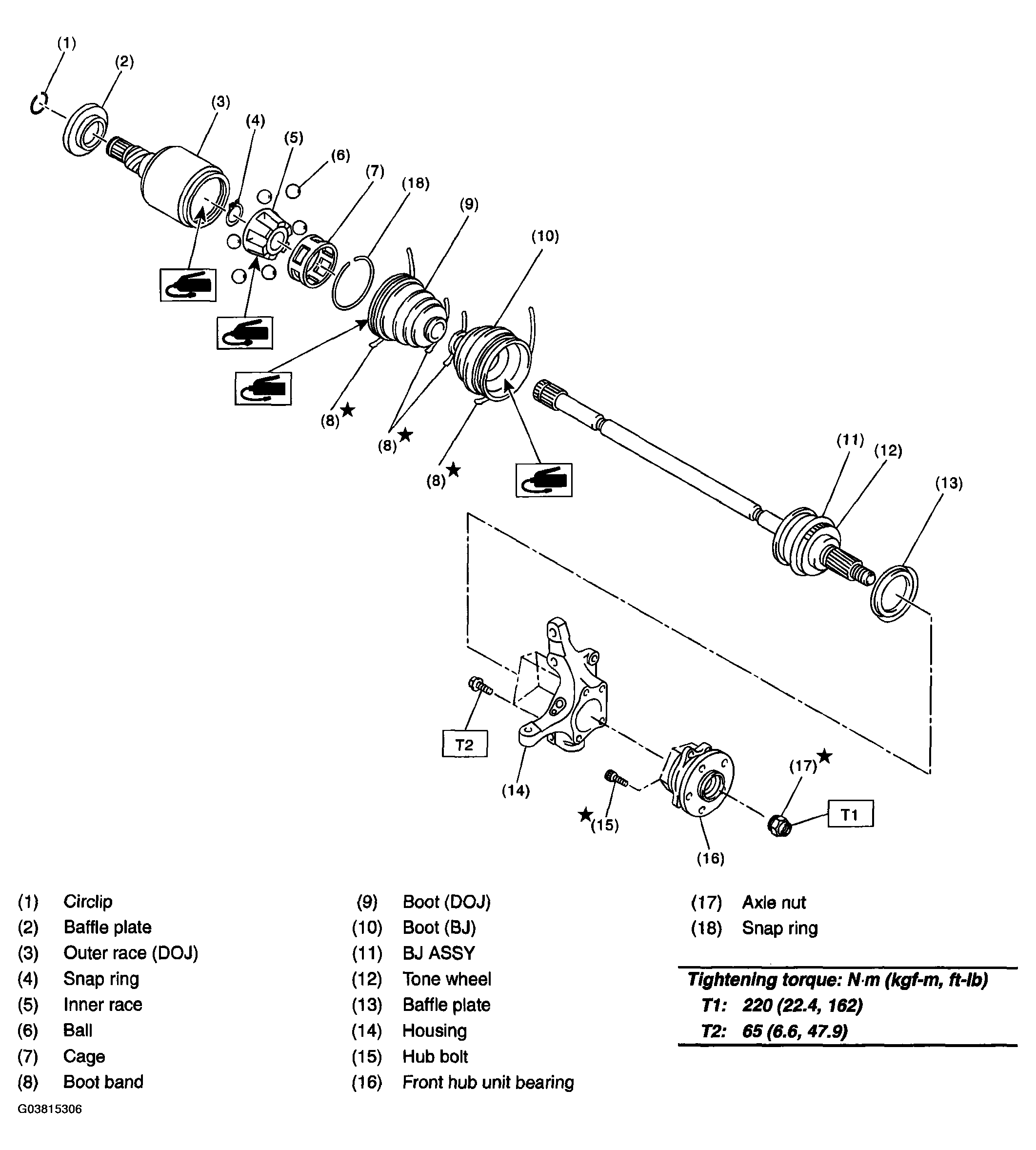

Fig 2: Exploded View Of Front Axle Shaft (BJ+DOJ Type) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
