AT Shift Lock Control System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

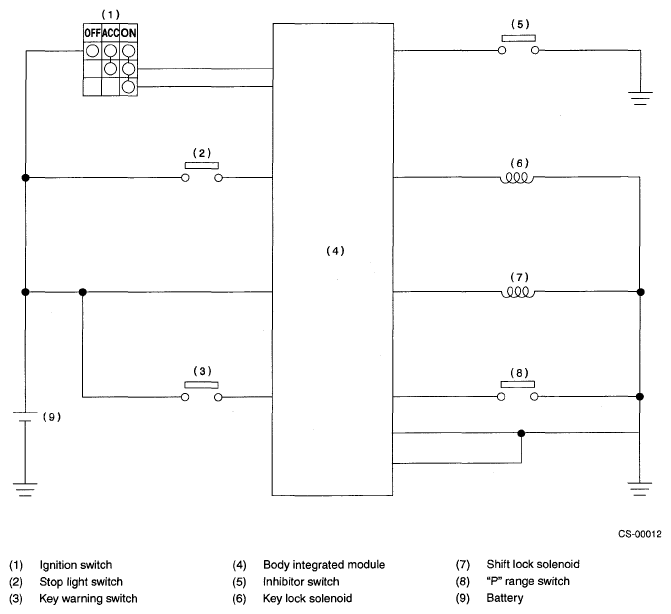

Fig 1: Shift Lock Control System - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
