General Information: Note: Note: Tie-Downs

Tie downs are used when transporting vehicles and when using the chassis dynamo. Attach tie downs only to the specified points on the vehicle.

• Tie-down point

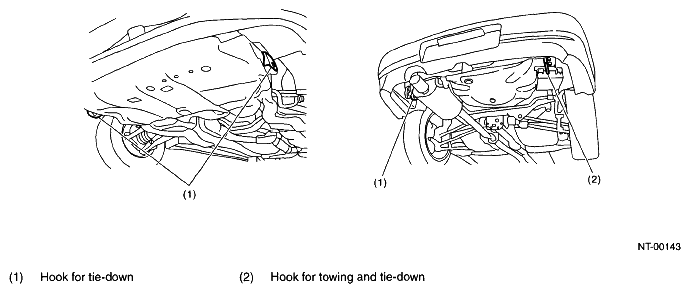

  Fig 1: Identifying Tie-Down Points


• Chain direction at tie-down condition
  Fig 2: Chain Direction At Tie-Down Condition


• Chain pulling range at tie-down condition
  Fig 3: Chain Pulling Range At Tie-Down Condition


• Vehicle sinking volume at tie-down condition

  Measure the distance "L" from tire highest point to arch highest point before tie-down and after tie-down. Difference of measurement value (drop height) shall be within 50 mm (1.97 in). Make sure to fix the vehicle securely.

  Fig 4: Measuring Distance "L" From Tire Highest Point To Arch Highest Point
