Engine Controls - Engine (Diagnostics) (H4DOTC): Electrical Component Location: Location: Engine

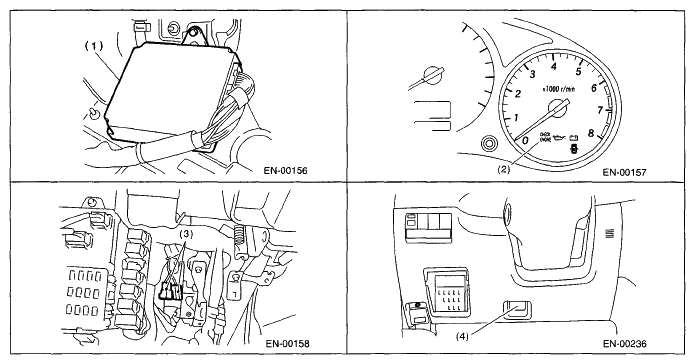

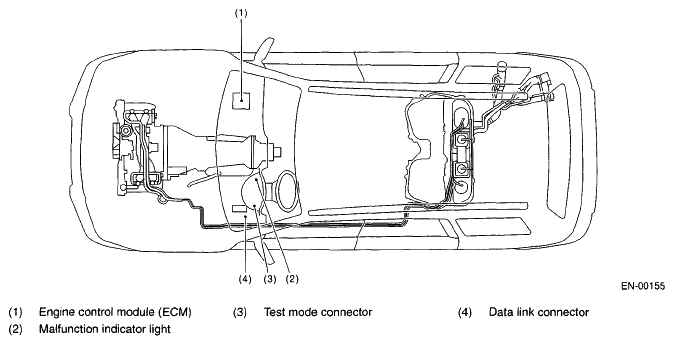

Fig 1: Identifying Control Module Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Control Module Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

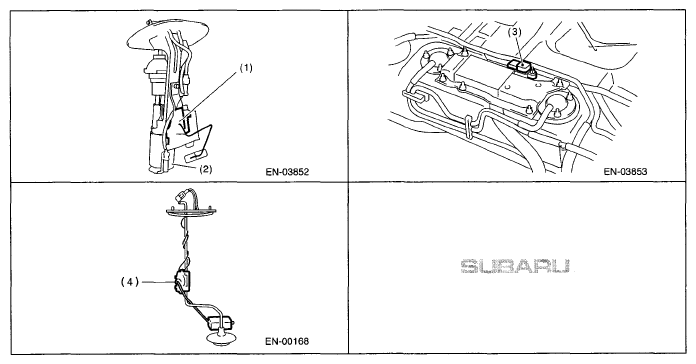

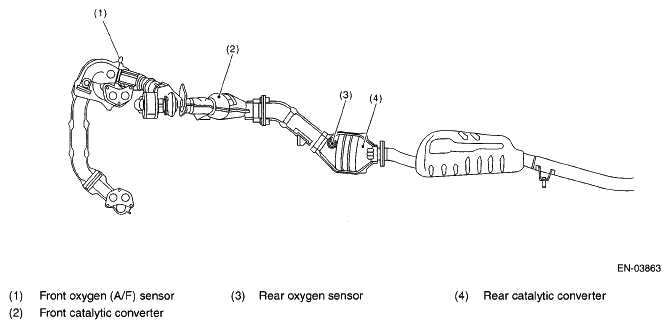

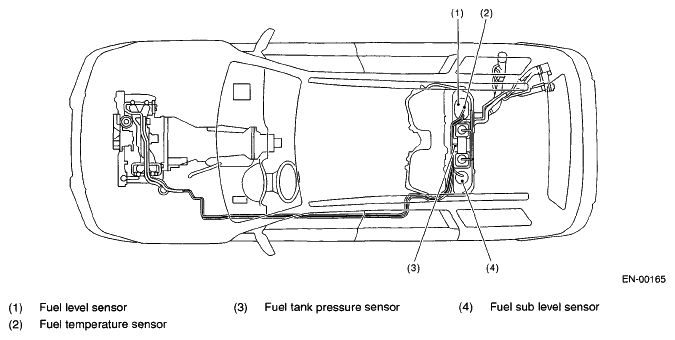

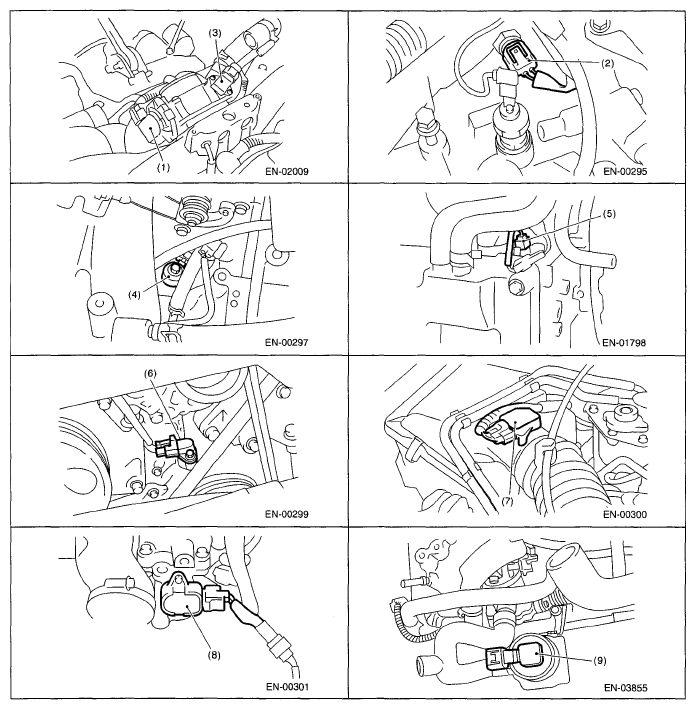

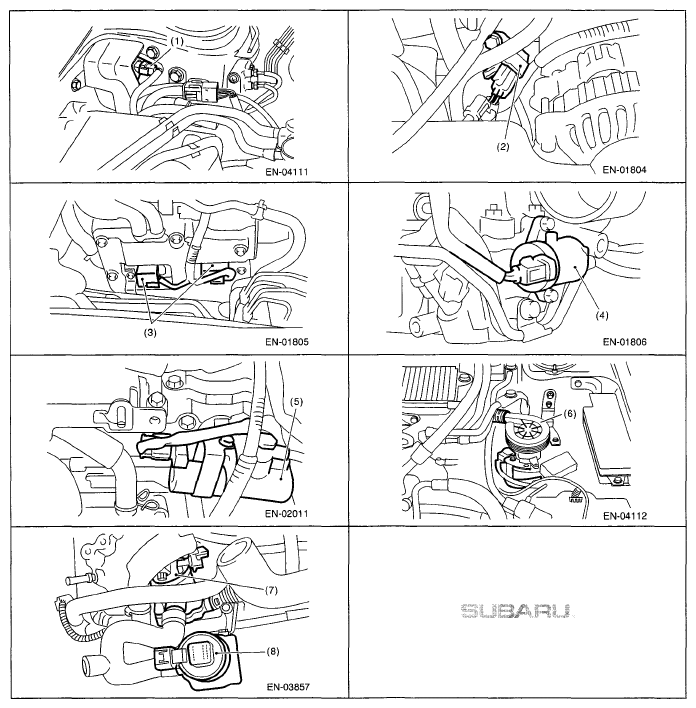

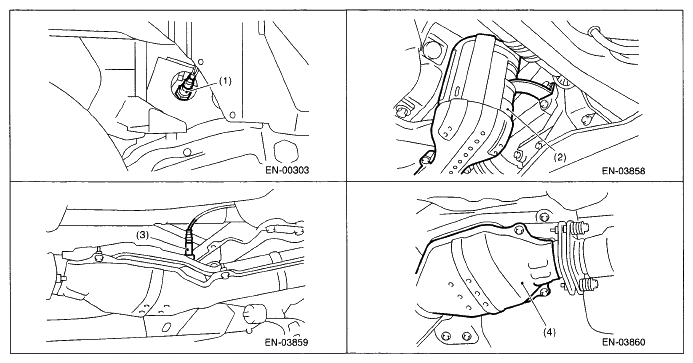

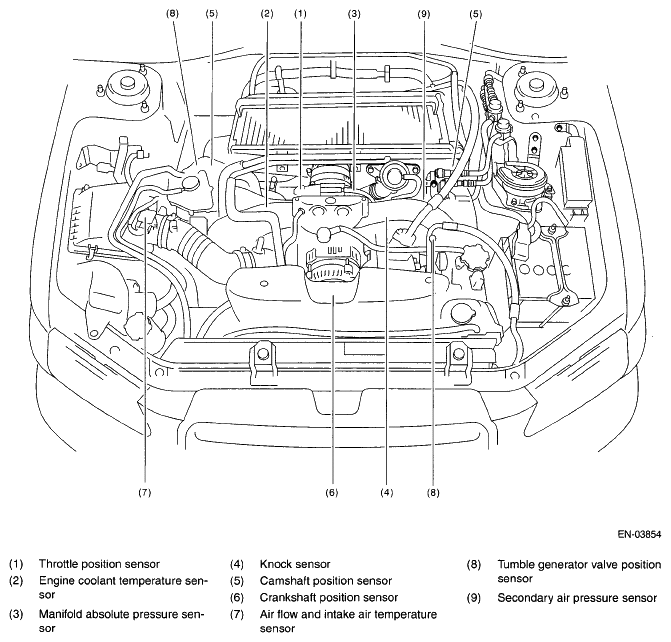

Fig 3: Identifying Sensor Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Sensor Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensor Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Sensor Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Sensor Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Sensor Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Solenoid valve, actuator, emission control system parts and ignition system parts

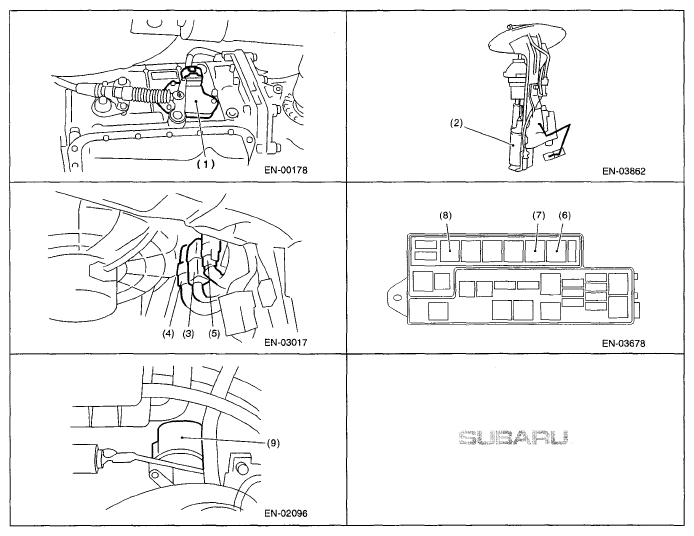

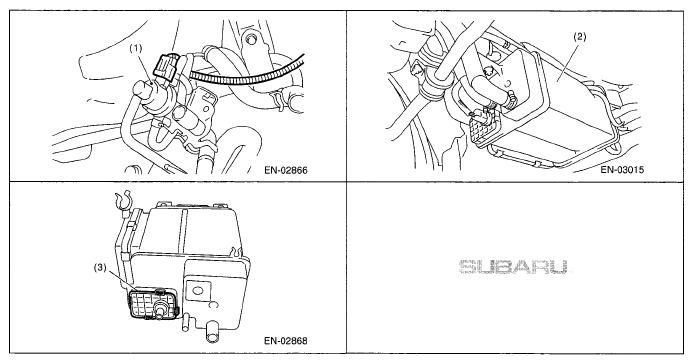

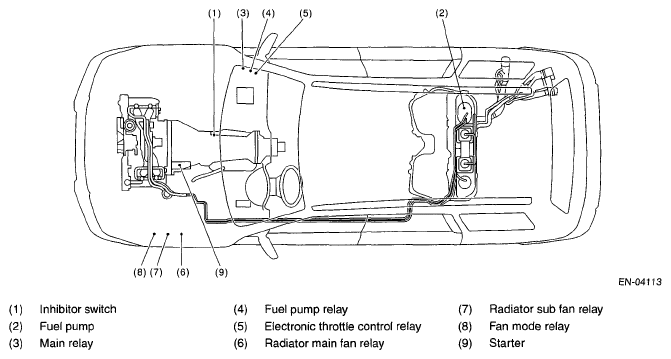

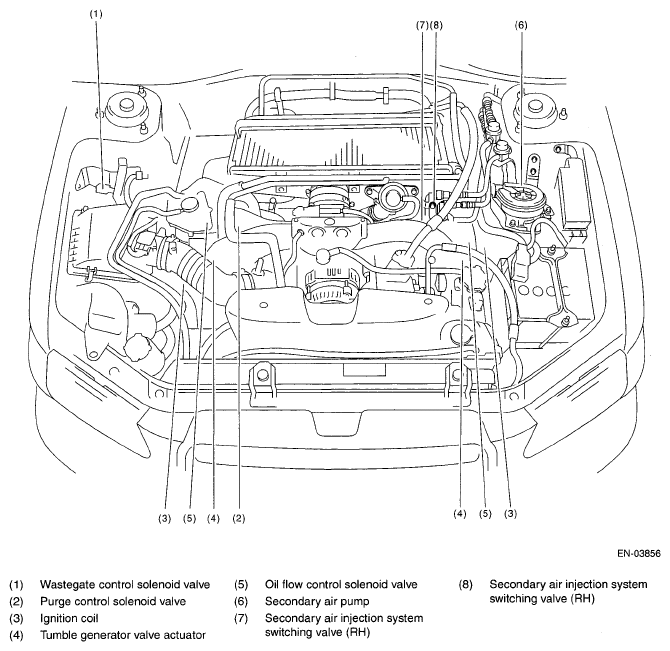

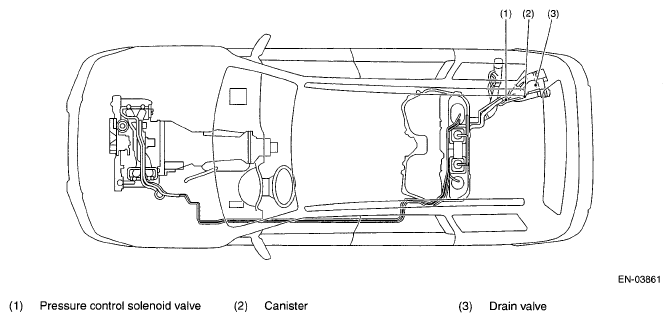

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
