Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

Non-turbo model

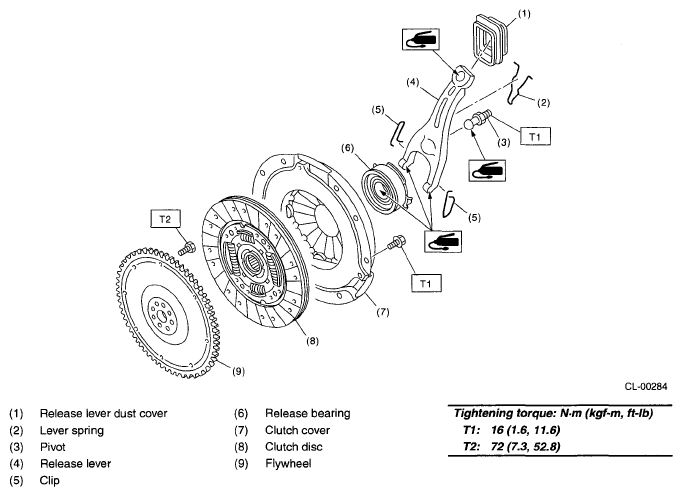

Fig 1: Identifying Clutch Assembly Component - Non-Turbo Model
G04994707

Turbo model

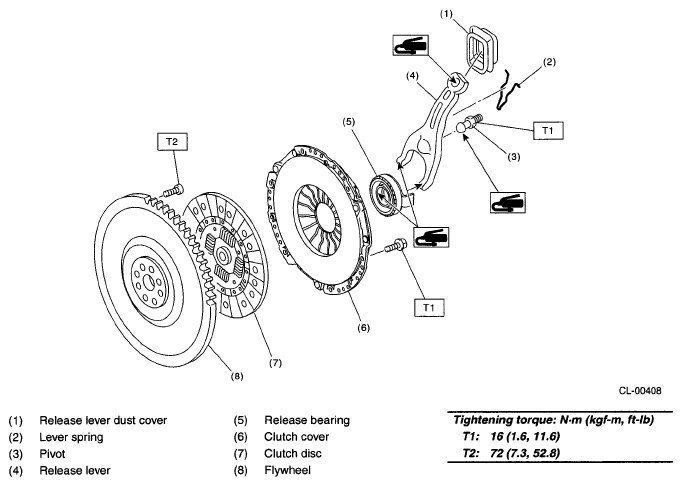

Fig 2: Identifying Clutch Assembly Component - Turbo Model
G04994708
