Conditions For Abs Sequence Control

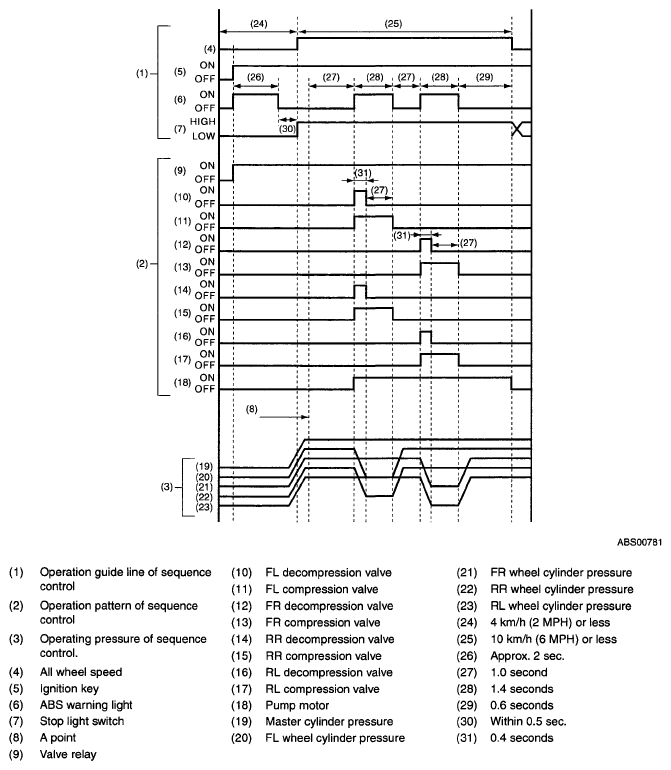

Fig 1: ABS Sequence Control Conditions Chart
G04994796Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • The control operation starts from point A.
  • HIGH indicates high voltage.
  • LOW indicates low voltage.
