Control Valve And Harness Routing

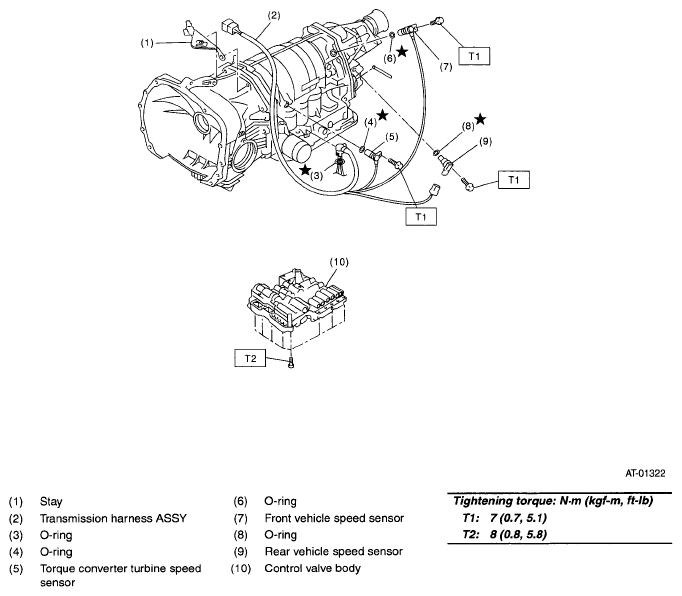

Fig 1: Identifying Control Valve And Harness Routing Components
G04993982Courtesy of SUBARU OF AMERICA, INC.
