Control Module I/O Signal: Wiring Diagram

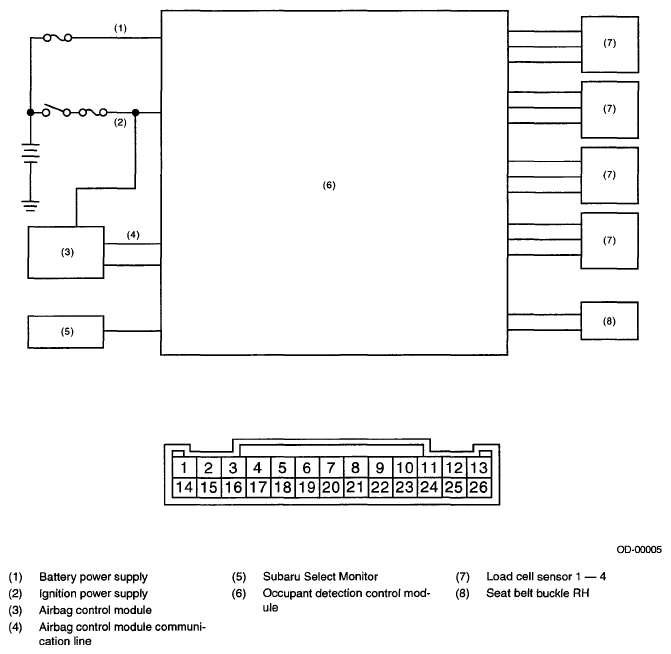

Fig 1: Identifying Control Module - Wiring Diagram

G04995191

Courtesy of SUBARU OF AMERICA, INC.
