Conditions For VDC Sequence Control

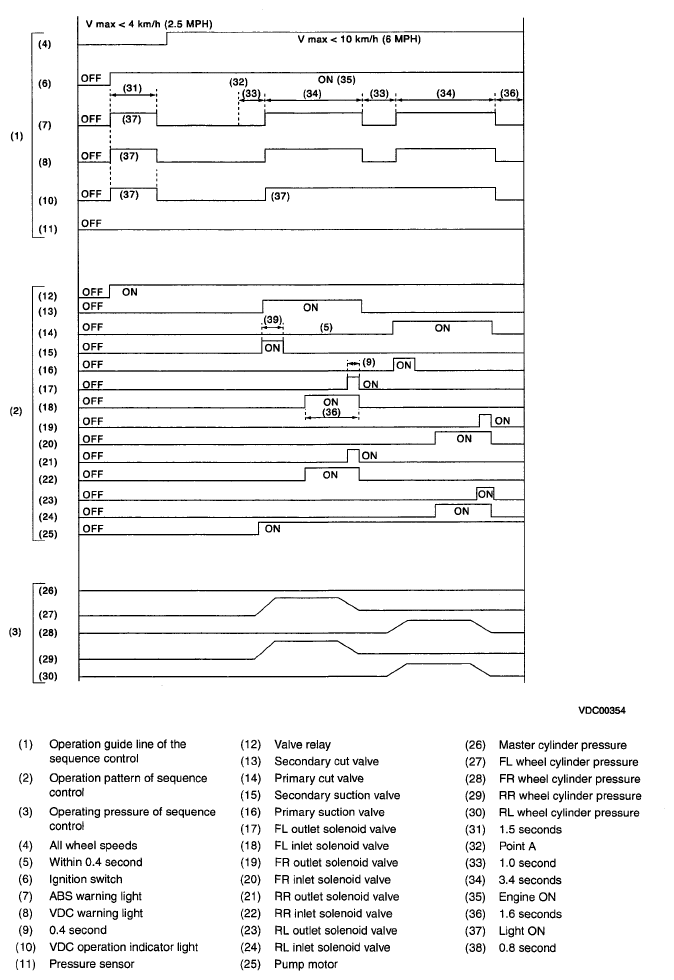

Fig 1: Blinking Pattern Of VDC Sequence Control

G04994875

NOTE: Operation starts from point A.
