Home >> Subaru >> 2006 >> Baja Turbo, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> General Description >> Components With Torque Specifications >> Differential Gear

Differential Gear

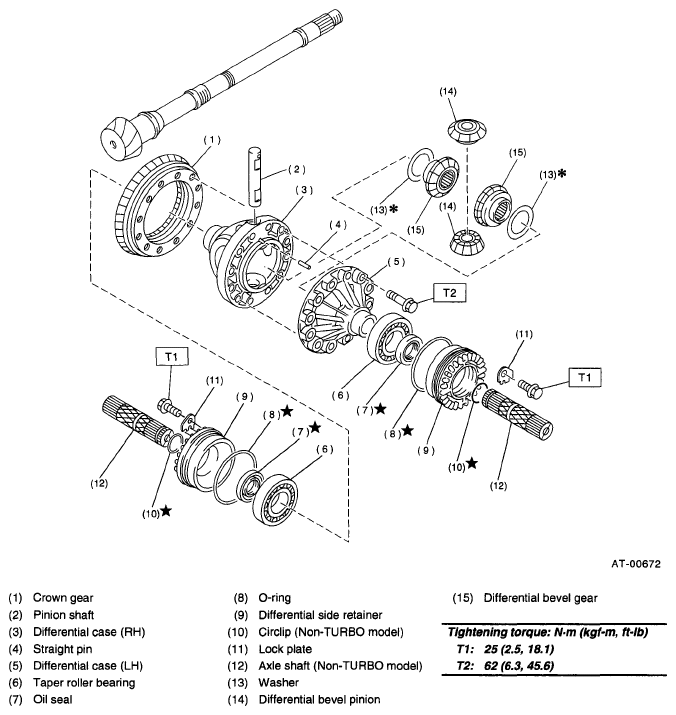

Fig 1: Differential Gear Replacement Components Torque Specifications

G04990216

Courtesy of SUBARU OF AMERICA, INC.
