Electrical Components Location: Location: Engine

• Module

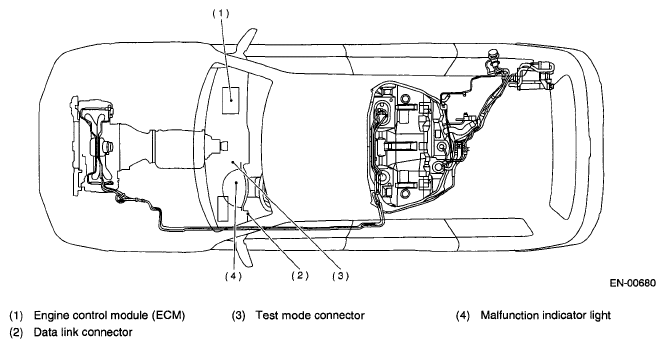

  Fig 1: Identifying Module Components (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

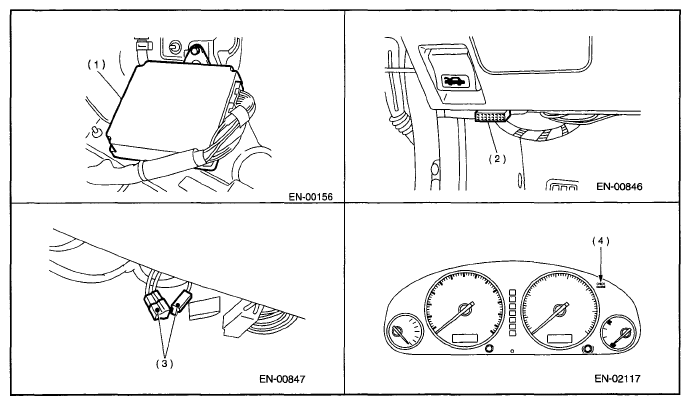

  Fig 2: Identifying Module Components (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
• Sensor

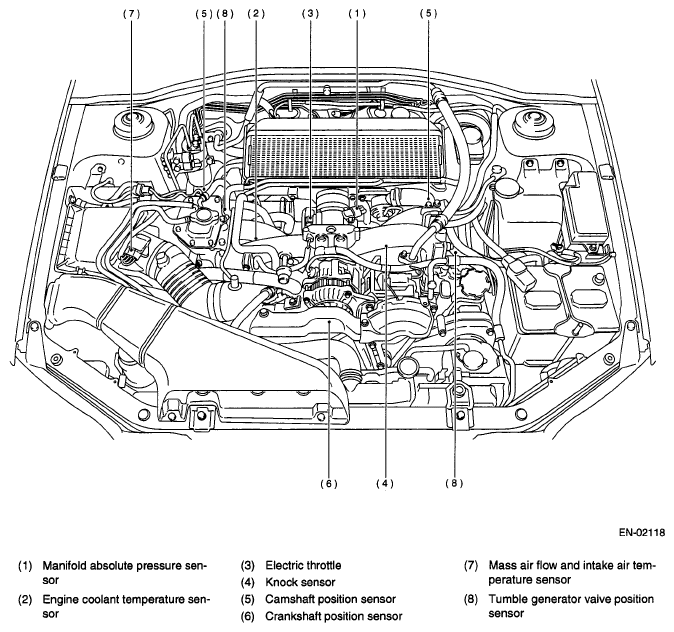

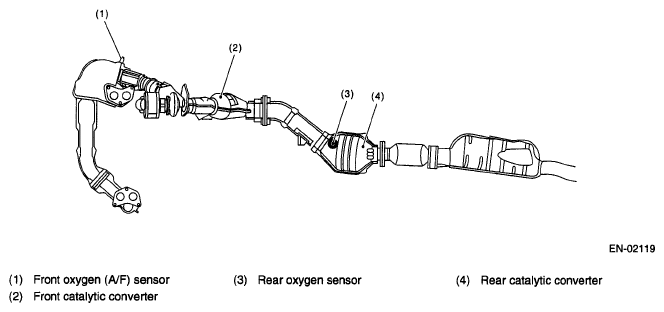

  Fig 3: Identifying Sensors Location (1 Of 6)

  Courtesy of SUBARU OF AMERICA, INC.

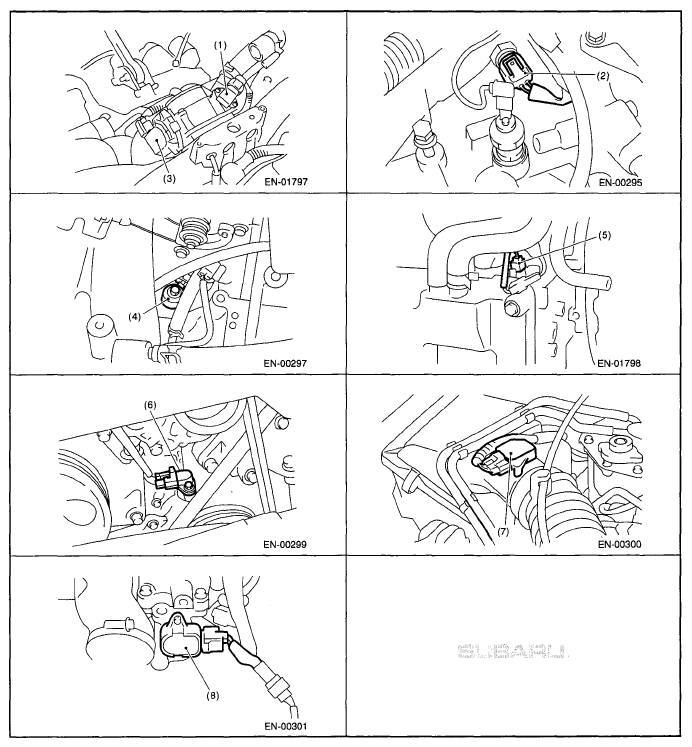

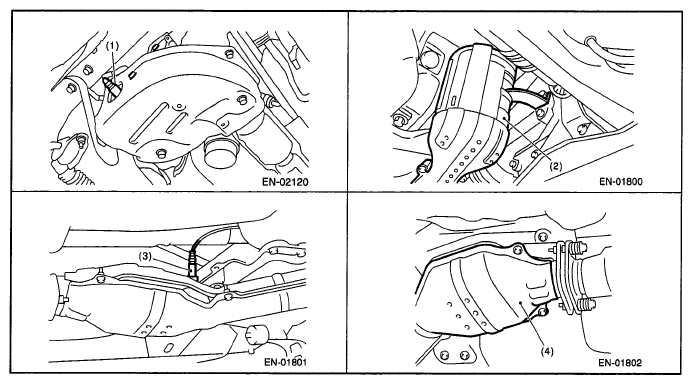

Fig 4: Identifying Sensors Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

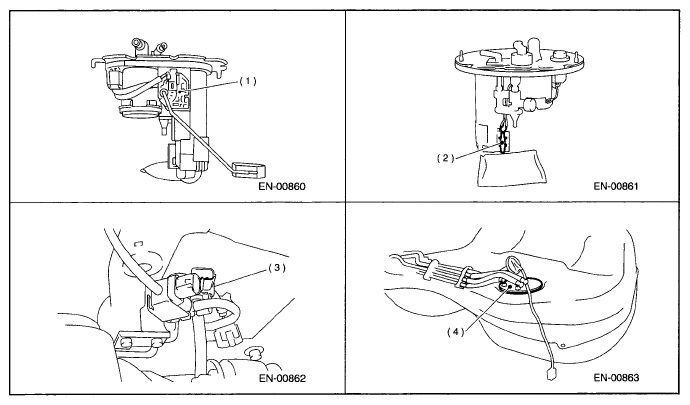

Fig 5: Identifying Sensors Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

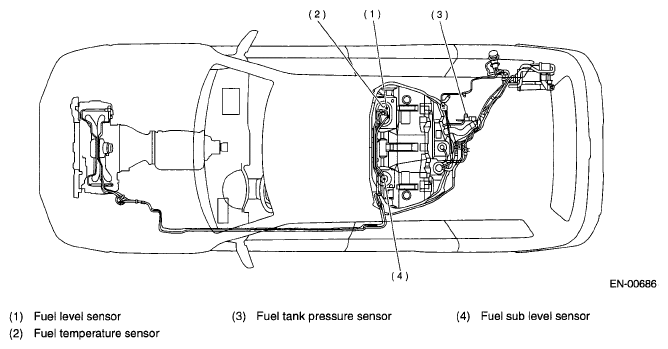

Fig 6: Identifying Sensors Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Sensors Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Sensors Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

• Solenoid Valve, Actuator, Emission Control System Parts and Ignition System Parts

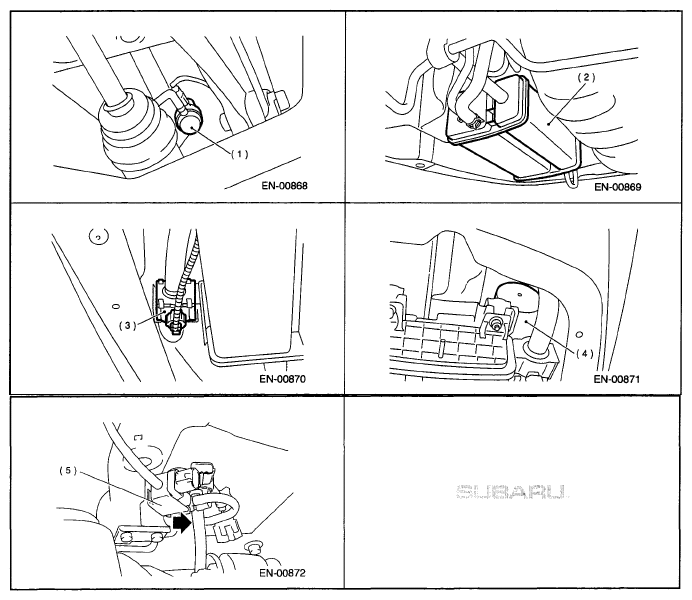

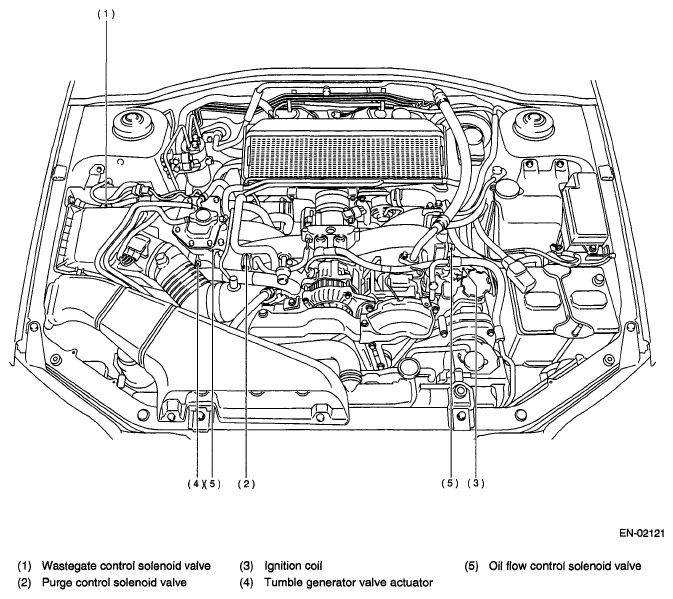

  Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (1 Of 6)

  Courtesy of SUBARU OF AMERICA, INC.

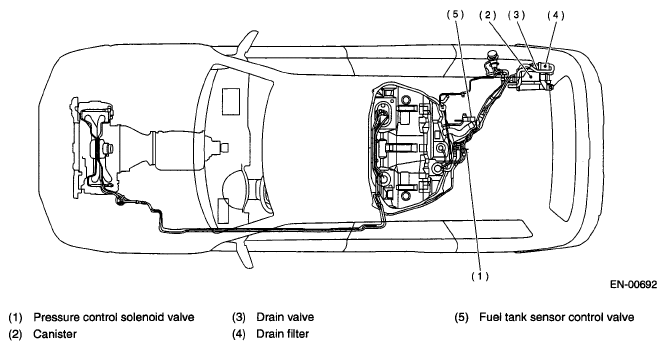

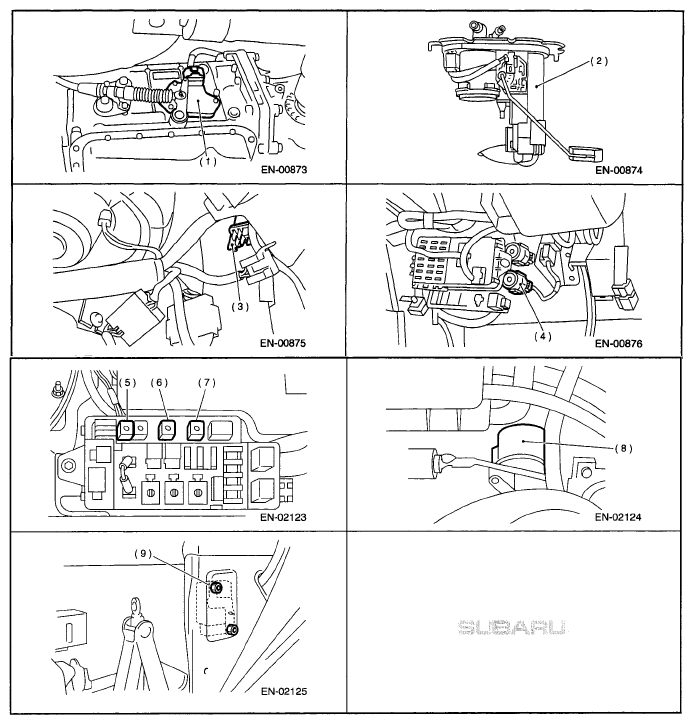

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

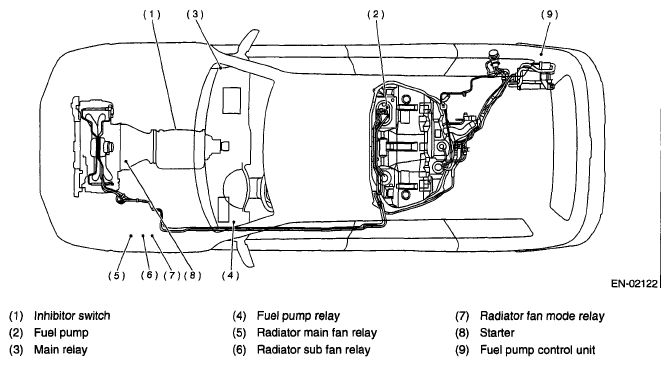

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

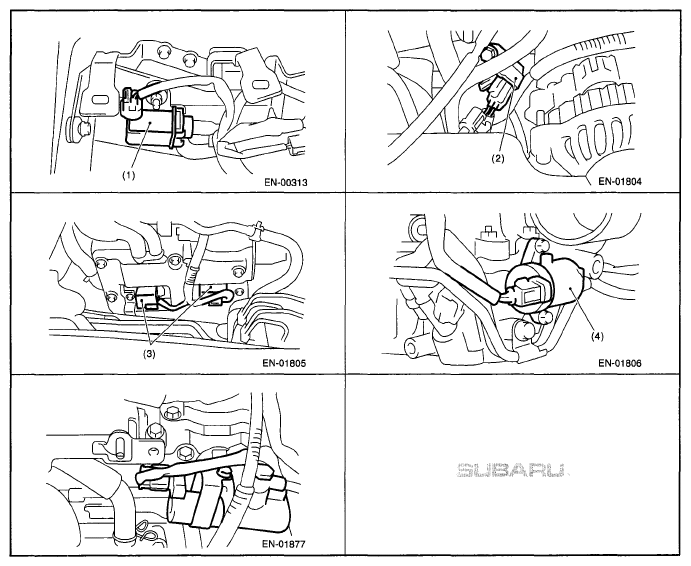

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
