Components With Torque Specifications

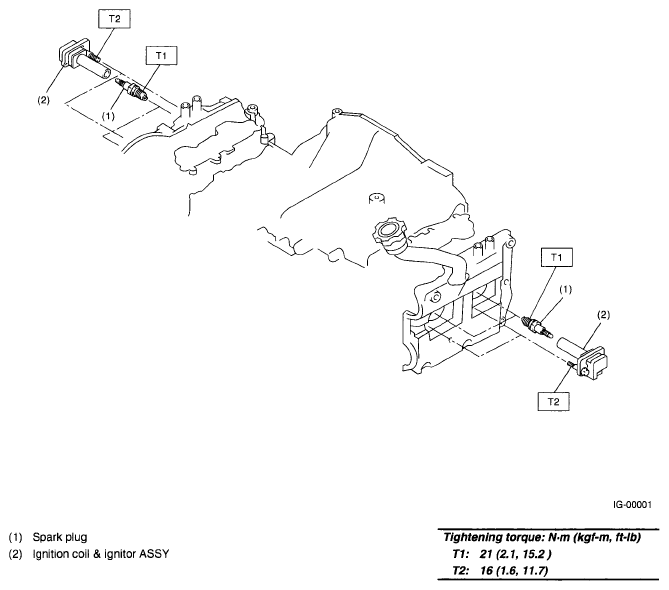

Fig 1: Ignition Assembly Replacement Components With Torque Specifications

G04989813

Courtesy of SUBARU OF AMERICA, INC.
