Fuel Tank: Installation

Support fuel tank with transmission jack and push fuel tank harness into access hole with grommet.
Set fuel tank and temporarily tighten bolts of fuel tank bands.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect air vent hose (A) to evaporation pipe assembly and connect evaporation hose (H) to pressure control solenoid valve.

Fig 2: Identifying Air Vent Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect fuel filler hose (A) and fuel tank pressure sensor hose (B).

Fig 3: Locating Fuel Filler Hose And Fuel Tank Pressure Sensor Hose
Courtesy of SUBARU OF AMERICA, INC.
Tighten band mounting bolts.
Tightening torque:

33 N.m (3.4 kgf-m, 25 ft-lb)

Fig 4: Locating Band Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install rear side fuel tank cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 5: Locating Rear Side Fuel Tank Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support rear suspension assembly and then tighten bolts which secure rear suspension assembly.
  Tightening torque:

  T1: 172 N.m (17.5 kgf-m, 127 ft-lb)

  T2: 108 N.m (11.0 kgf-m, 80 ft-lb)

  T3: 66 N.m (6.7 kgf-m, 48 ft-lb)

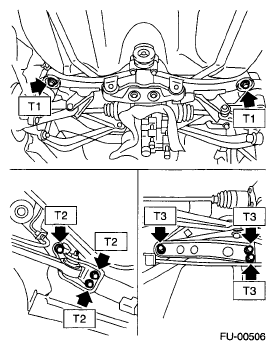

  Fig 6: Locating Rear Suspension Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Tighten bolt which holds rear shock absorber to rear suspension arm. < Ref. to INSTALLATION , Link Upper . >
  Tightening torque:

  157 N.m (16 kgf-m, 116 ft-lb)

  Fig 7: Locating Rear Shock Absorber Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Install rear brake caliper. < Ref. to INSTALLATION , Rear Disc Brake Assembly . >

Fig 8: Locating Rear Brake Caliper Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts which hold rear brake hoses holding bracket.
Tightening torque:

33 N.m (3.4 kgf-m, 25 ft-lb)

Fig 9: Locating Rear Brake Hoses Holding Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install parking brake cable to cabin by forcibly pushing it forward.
Tighten bolts which hold parking brake cable holding bracket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 10: Locating Parking Brake Cable Holding Bracket
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

32 N.m (3.3 kgf-m, 23.9 ft-lb)

Fig 11: Locating Parking Brake Cable Holding Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect connector to ABS sensor.

Fig 12: Identifying ABS Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install propeller shaft. < Ref. to INSTALLATION , Propeller Shaft . >
Install rear exhaust pipe and muffler.
NOTE: To facilitate the procedure, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

SUBARU CRC (Part No. 004301003)
1. Install left and right rubber cushions.

  Fig 13: Locating Left And Right Rubber Cushions
  Courtesy of SUBARU OF AMERICA, INC.
2. Install front rubber cushion and attach muffler assembly.

  Fig 14: Locating Front Rubber Cushion
  Courtesy of SUBARU OF AMERICA, INC.
3. Install rear exhaust pipe to center exhaust pipe.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.0 ft-lb)

  Fig 15: Identifying Rear Exhaust Pipe Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Install front side fuel tank cover.
Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

T2: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

Fig 16: Locating Fuel Tank Cover Nuts
Courtesy of SUBARU OF AMERICA, INC.

Fig 17: Locating Fuel Tank Cover Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install rear wheel.
Lower the vehicle.
Tighten wheel nuts to rear wheel.
Install parking brake cable. < Ref. to INSTALLATION , Parking Brake Lever . >
Install console box. < Ref. to INSTALLATION , CONSOLE BOX. >
Connect fuel hoses and hold them with quick connector. < Ref. to INSTALLATION , Fuel Delivery, Return and Evaporation Lines. >

Fig 18: Identifying Fuel Delivery And Return Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation pipe and hold it with quick connector. < Ref. to INSTALLATION , Fuel Delivery, Return and Evaporation Lines. >

Fig 19: Identifying Quick Connector Of Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install pipe protector.

Fig 20: Locating Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Install rear pillar trim. < Ref. to REMOVAL , REAR PILLAR TRIM. >
Connect fuel jet pump hose.

Fig 21: Identifying Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect connector to fuel sub level sensor.

Fig 22: Identifying Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install sub service hole cover.

Fig 23: Identifying Sub Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Connect connectors to fuel tank cord and plug service hole with grommet.

Fig 24: Locating Fuel Tank Connector
Courtesy of SUBARU OF AMERICA, INC.
Install holder clip which secures fuel tank cord on bracket.

Fig 25: Identifying Fuel Tank Cord On Bracket
Courtesy of SUBARU OF AMERICA, INC.
Set rear seat and floor mat.
Connect connector to fuel pump relay.

Fig 26: Locating Fuel Pump Relay Connector
Courtesy of SUBARU OF AMERICA, INC.
Adjust parking brake lever stroke. < Ref. to ADJUSTMENT , Parking Brake Lever . >
Check wheel alignment and adjust if necessary. < Ref. to INSPECTION , Wheel Alignment . >
