Baja Base, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
A/T & M/T Control Systems
>>
General Description
>>
Components With Torque Specifications
>>
Mt Gear Shift Lever
Mt Gear Shift Lever

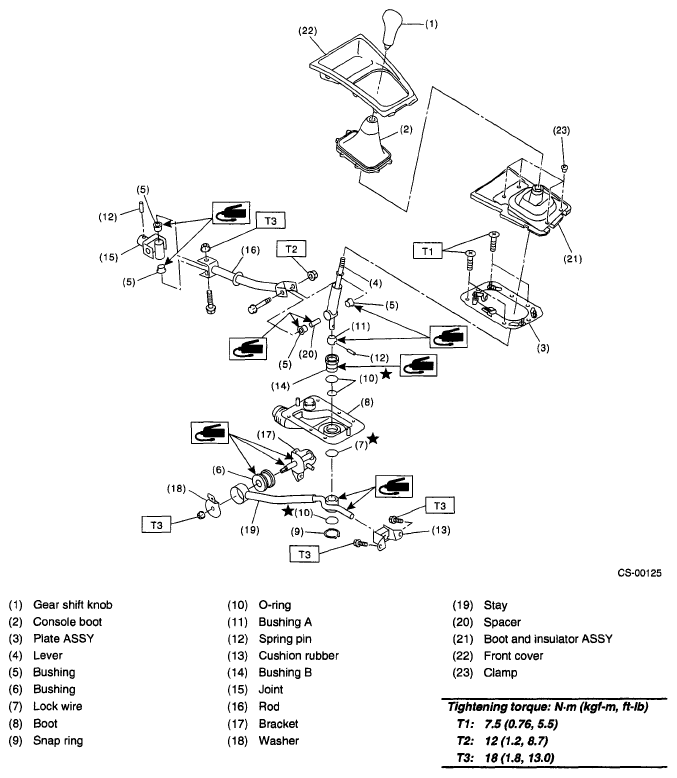

Fig 1: Exploded View Of MT Gear Shift Lever Components With Torque Specifications (MT Gear Shift Lever)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
