Home >> Subaru >> 2006 >> Baja Base, Standard >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T & M/T Control Systems >> General Description >> Components With Torque Specifications >> At Select Lever (Except Sport Shift Model)

At Select Lever (Except Sport Shift Model)

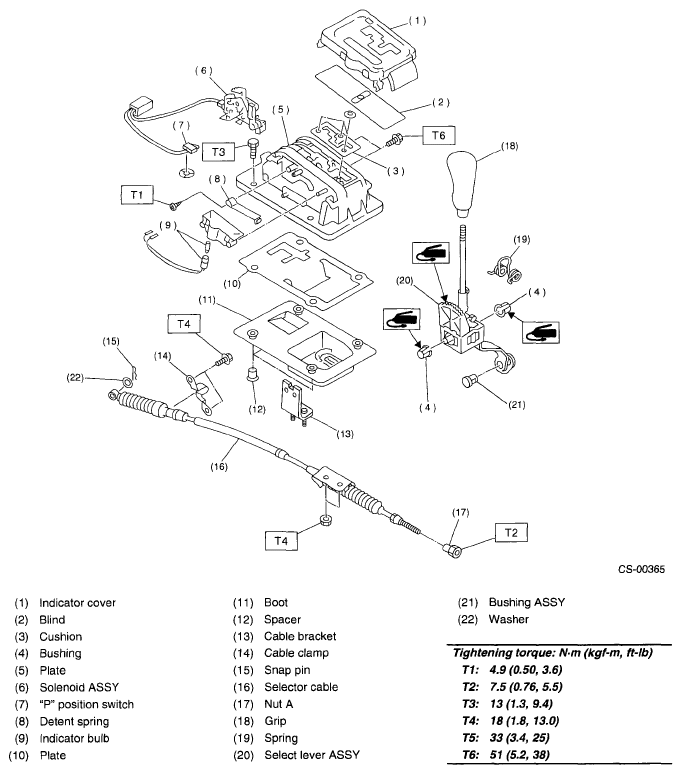

Fig 1: Exploded View Of AT Select Lever Components With Torque Specification (AT Select Lever (Except Sport Shift Model))

G04990129

Courtesy of SUBARU OF AMERICA, INC.
