Electrical Components Location: Location: Transmission

MODULE

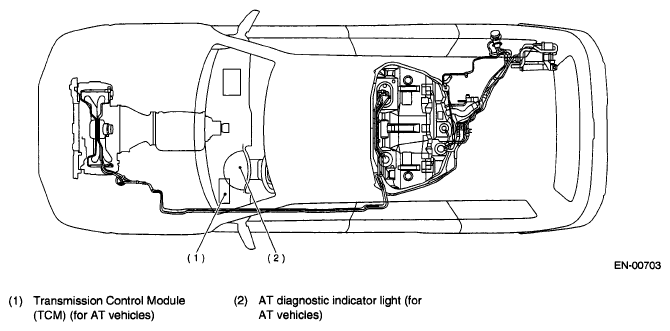

Fig 1: Identifying Transmission Modules (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

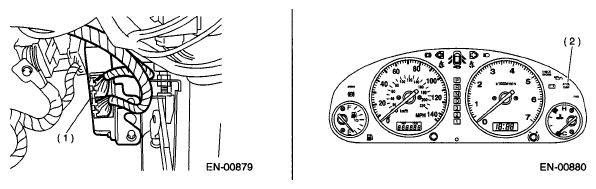

Fig 2: Identifying Transmission Modules (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
SENSOR

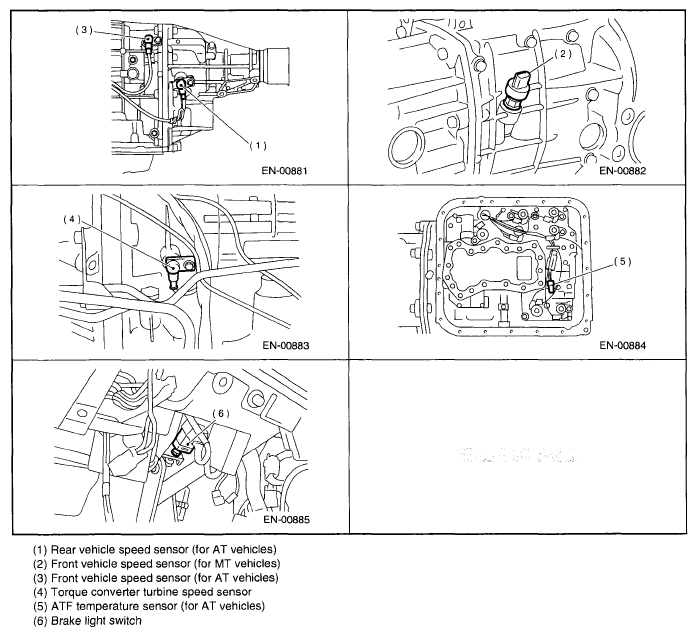

Fig 3: Identifying Transmission Sensors
Courtesy of SUBARU OF AMERICA, INC.
SOLENOID VALVE AND SWITCH (AT VEHICLES)

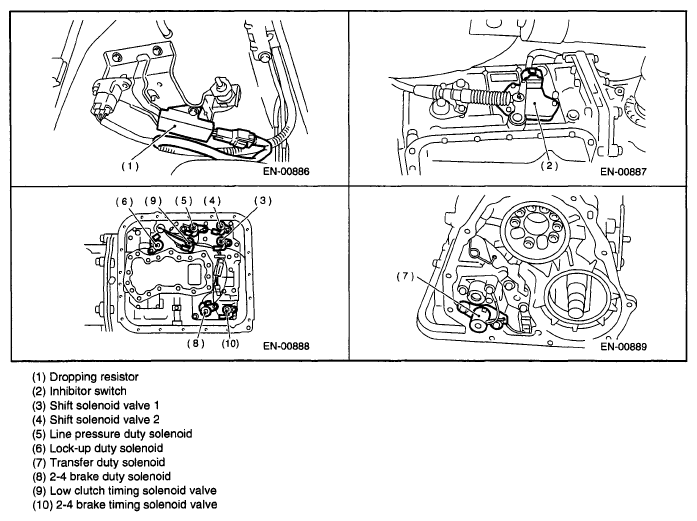

Fig 4: Identifying Solenoid Valve And Switch (AT Vehicles)
Courtesy of SUBARU OF AMERICA, INC.
SOLENOID VALVE AND SWITCH (MT VEHICLES)

Fig 5: Identifying Solenoid Valve And Switch (MT Vehicles)
Courtesy of SUBARU OF AMERICA, INC.
