Home >> Subaru >> 2006 >> Baja Base, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Charging Systems >> Starting/Charging Systems (H4SO) >> General Description >> Components With Torque Specifications >> Generator

Components With Torque Specifications: Generator

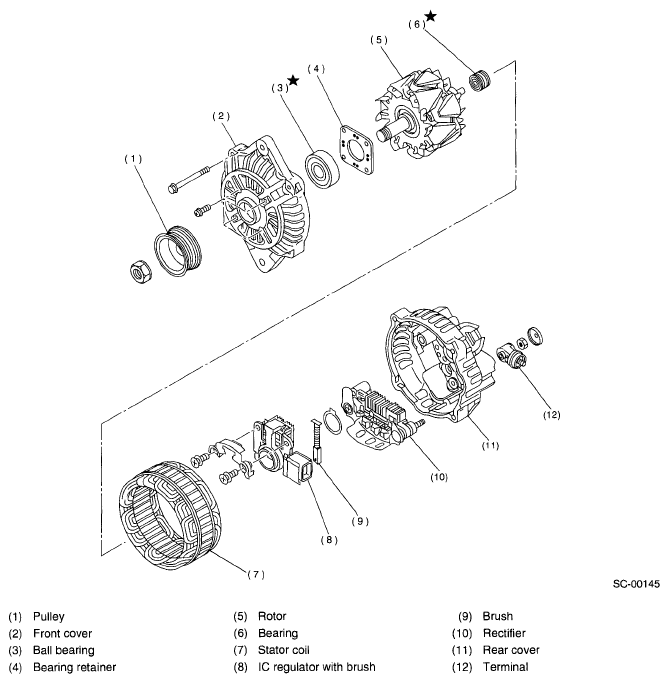

Fig 1: Identifying Generator Components

G04988640

Courtesy of SUBARU OF AMERICA, INC.
