MT Gear Shift Lever: Assembly

Clean all parts before assembly.
Mount the bushing and cushion rubber on the stay.

Fig 1: Identifying Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Mount each part; boot, O-ring, bushing A, spacer, bushing B, bushing and spring pin on the gear shift lever.
NOTE:
- Always use new O-rings.
- Apply grease [SUNLIGHT 2 (Part No. 003602010) or equivalent] to the inner and side surfaces of the bushing when installing the spacer.

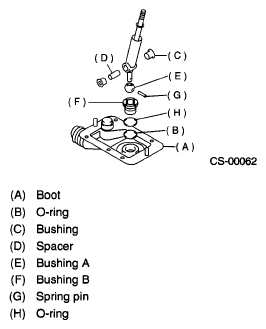

  Fig 2: Identifying Gear Shift Lever Components
  Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever into boot hole.
Install the snap ring and stay to bushing B.

Fig 3: Identifying Snap Ring And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Tighten with a new lock wire to the extent that the boot will not come off.

Fig 4: Identifying Lock Wire And Stay
Courtesy of SUBARU OF AMERICA, INC.
Insert the rod into boot hole.
Connect the rod to gear shift lever.
Tightening torque:

11.8 N.m (1.2 kgf-m, 8.7 ft-lb)

Fig 5: Identifying Rod, Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of the rod in relation to gear shift lever.
Check that there is no excessive play and that parts move smoothly.
