Electrical Component: Location

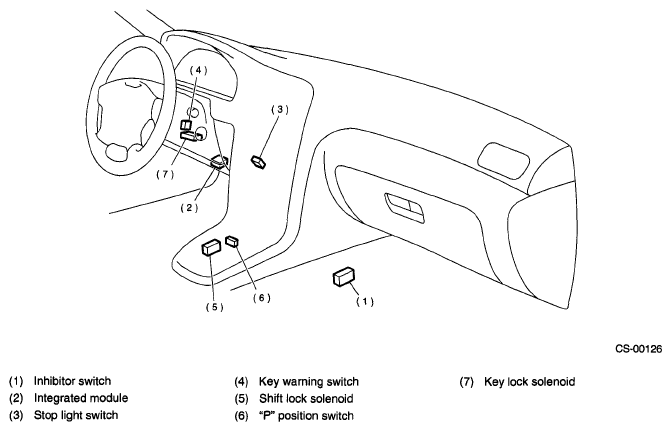

Fig 1: Identifying Electrical Component Location (1 Of 2)
G04990132Courtesy of SUBARU OF AMERICA, INC.

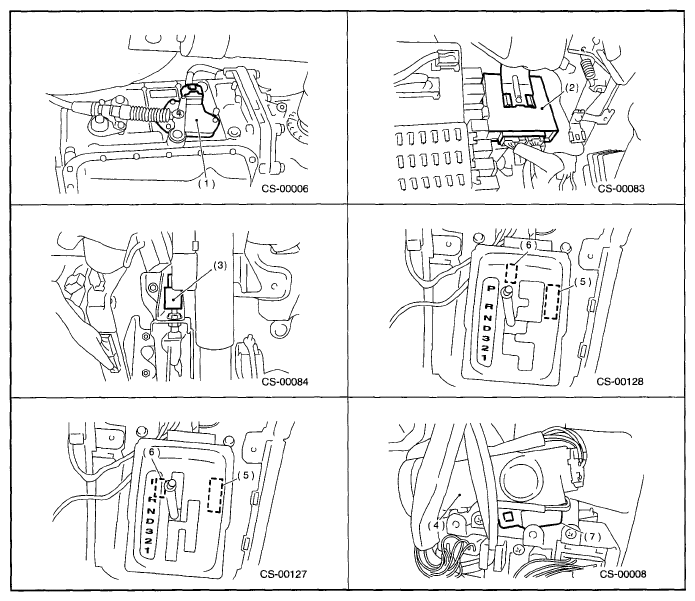

Fig 2: Identifying Electrical Component Location (2 Of 2)
G04990133Courtesy of SUBARU OF AMERICA, INC.
