Home >> Subaru >> 2006 >> B9 Tribeca Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting/Charging Systems (H6DO) >> General Description >> Components With Torque Specifications >> Starter

Components With Torque Specifications: Starter

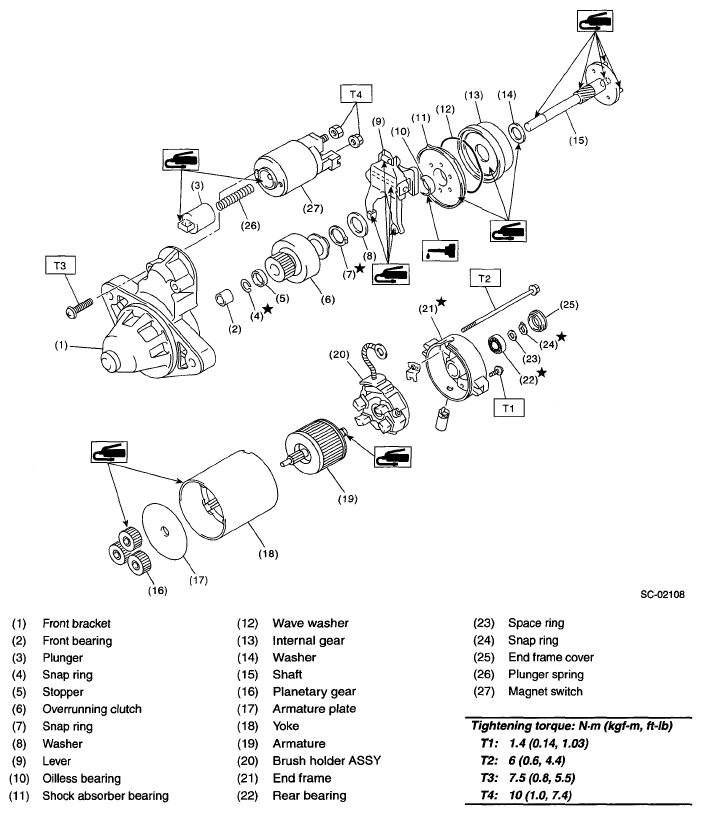

Fig 1: Starter Components With Torque Specifications

G05031545

Courtesy of SUBARU OF AMERICA, INC.
