Components With Torque Specifications: Generator

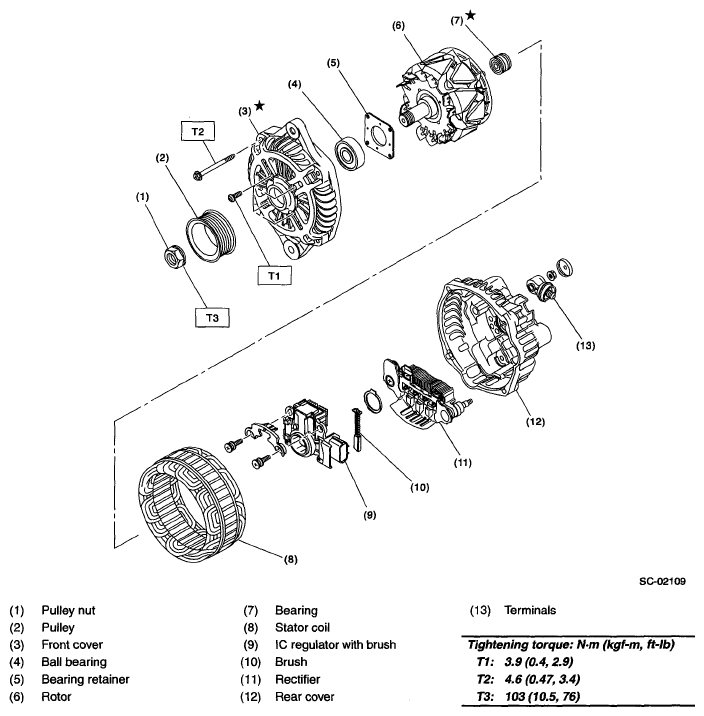

Fig 1: Generator Components With Torque Specifications

G05031546

Courtesy of SUBARU OF AMERICA, INC.
