VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

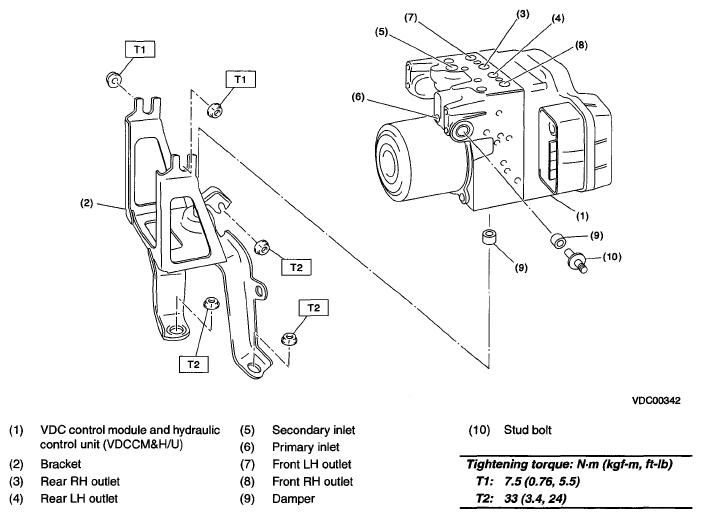

Fig 1: VDC Control Module And Hydraulic Control Unit Components With Torque Specifications

G05032672

Courtesy of SUBARU OF AMERICA, INC.
