Relay Box

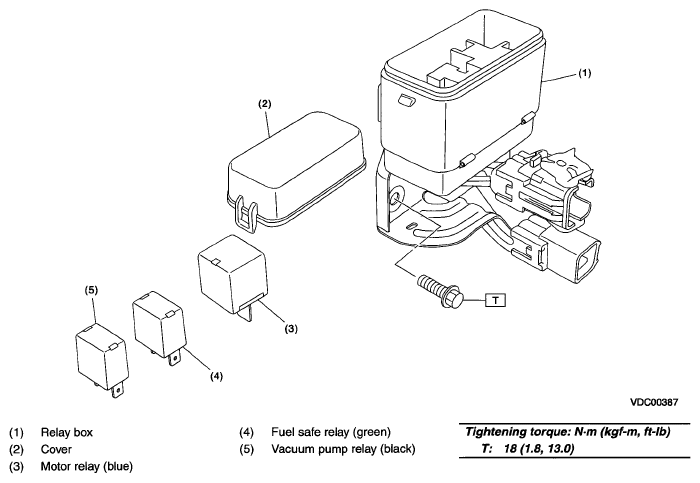

Fig 1: Relay Box Replacement Components With Torque Specifications
G05032673Courtesy of SUBARU OF AMERICA, INC.
