Control Panel: Inspection: Notes

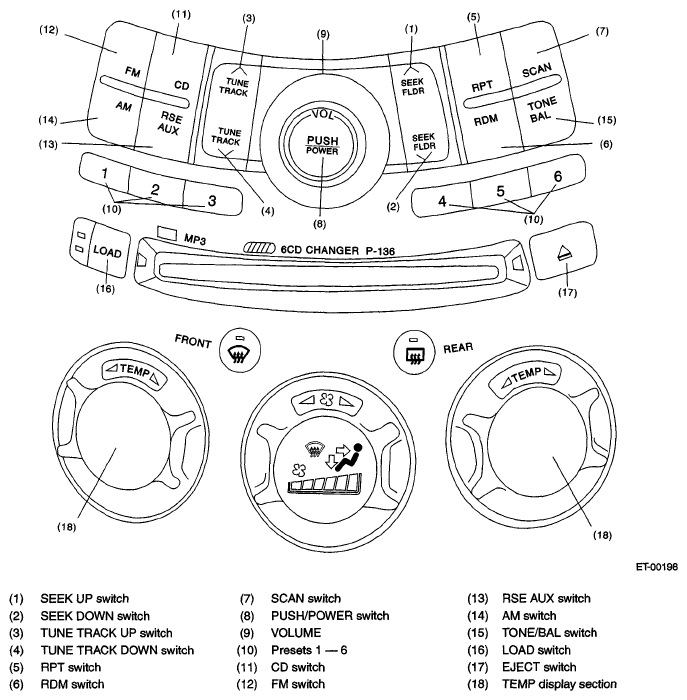

Fig 1: Identifying Control Panel

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

For self diagnosis of the audio system, there is a communications check (communication condition between the audio and the control panel) and a switch check. Perform a communications check first and make sure it is operating normally before proceeding to the inspection of switches.
Complete operations from when the self diagnosis mode of step 1 operates and the buzzer sounds, to pressing the preset 1 switch in 3., within 15 seconds. If more than 15 seconds pass, a communications error will be displayed.
During the diagnosis, do not press the POWER (8), FM (12), AM (14), CD (11), RSE AUX (13) switches. Pressing these switches will disengage the self diagnosis mode.
