Engine Controls - Engine (Diagnostics) (H4SO U5 (PZEV)): Electrical Component Location: Location: Engine

• Control module

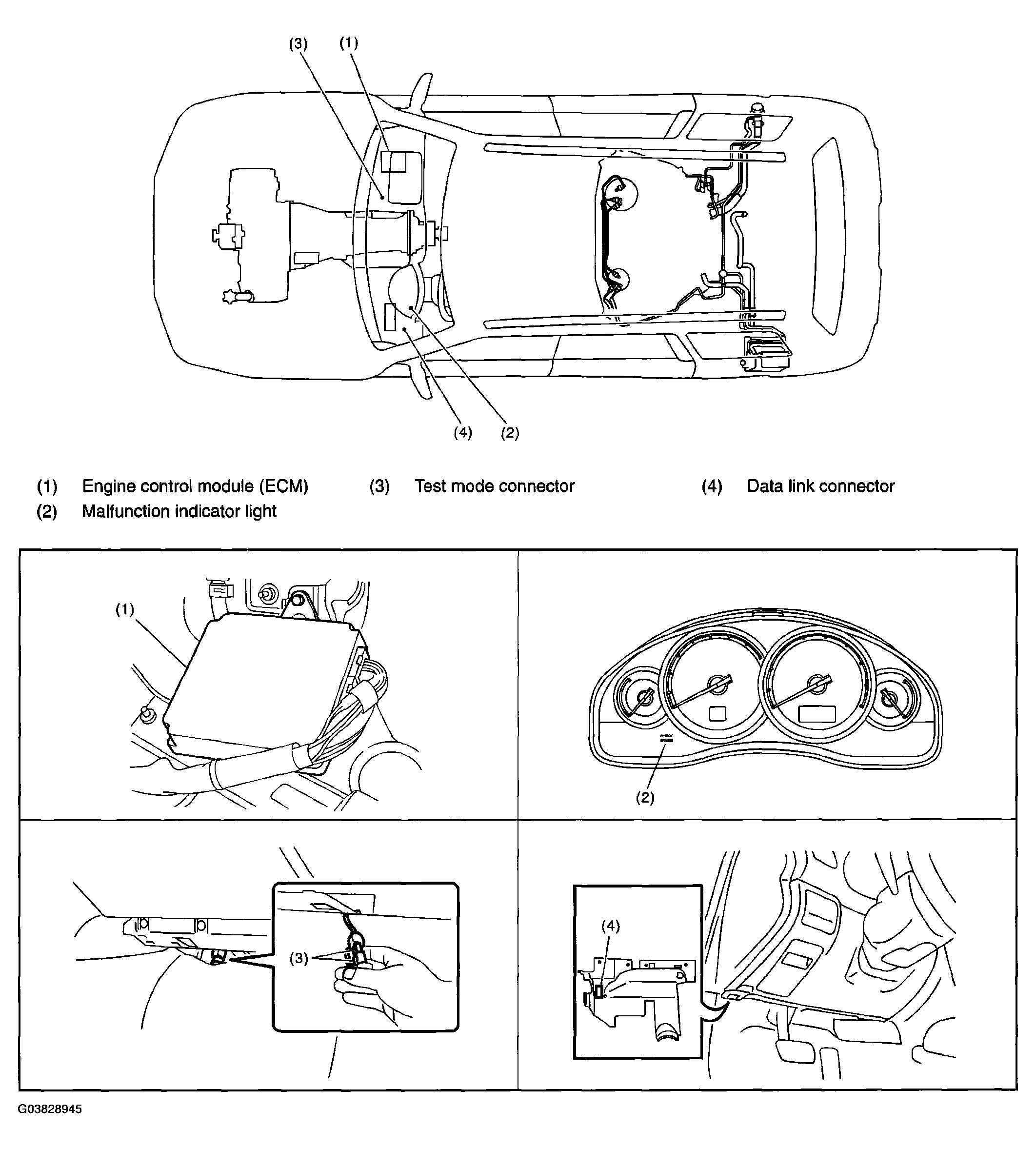

  Fig 1: Identifying Engine Control Module And Components

  Courtesy of SUBARU OF AMERICA, INC.
• Sensor

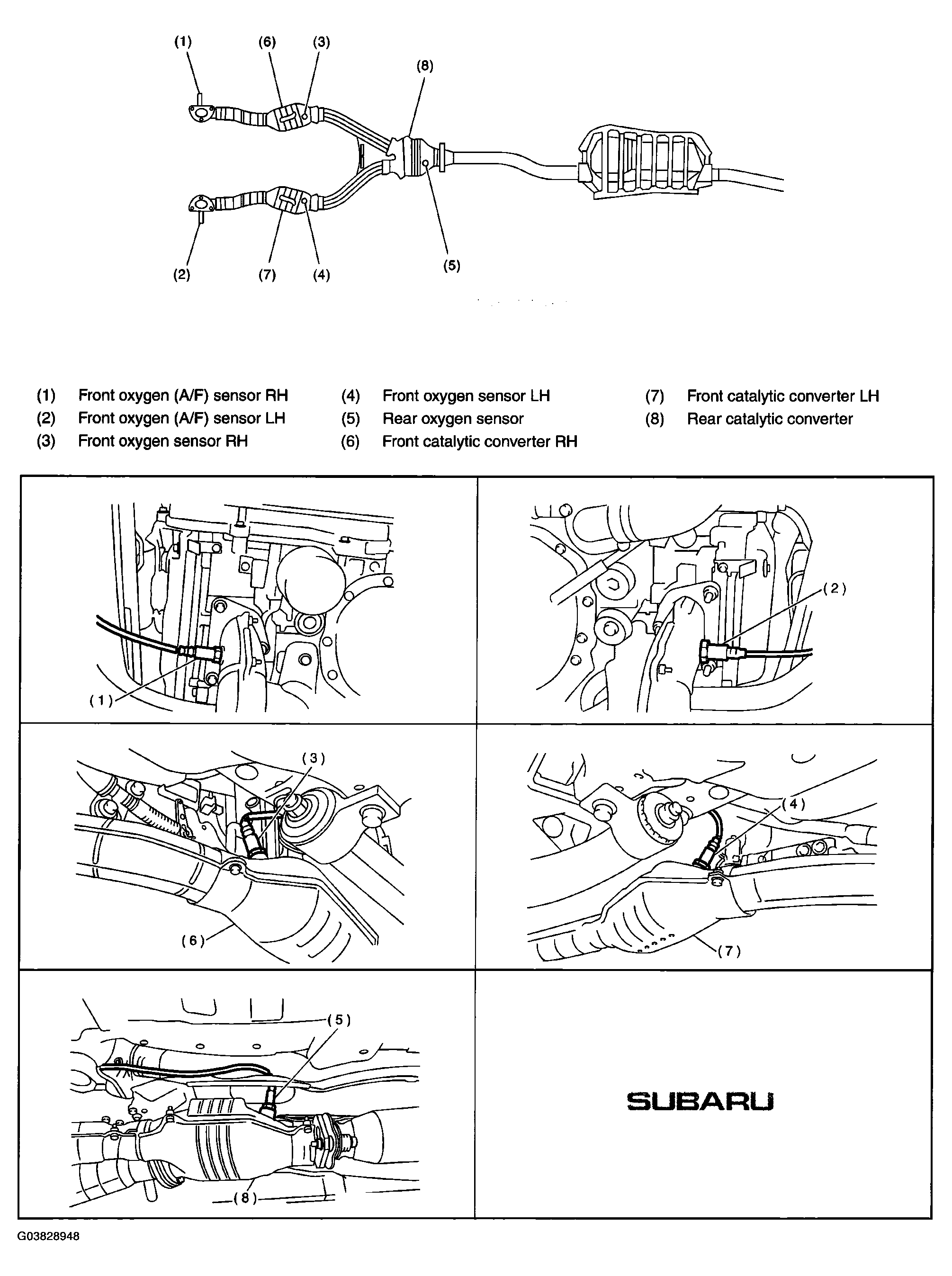

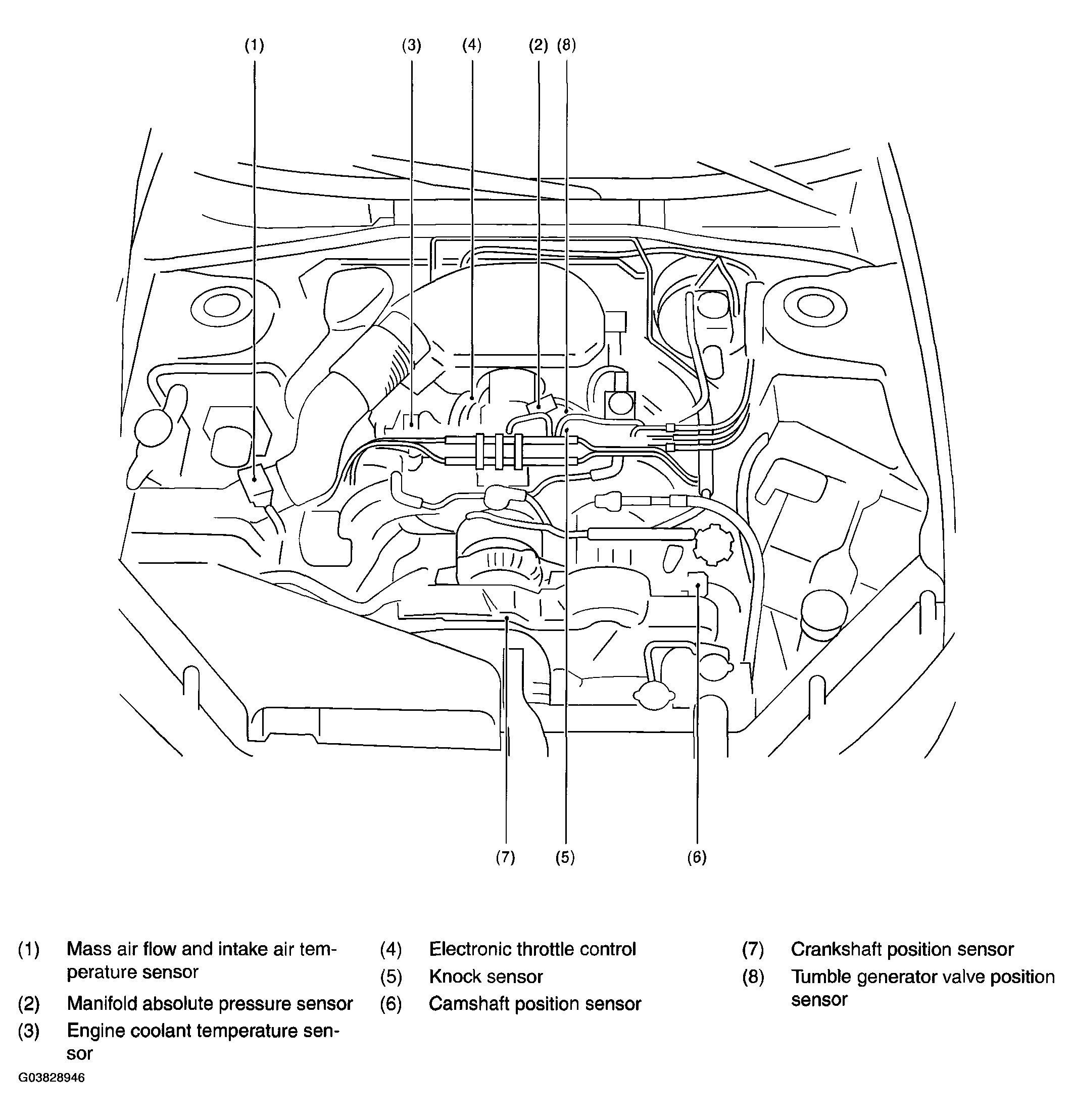

  Fig 2: Identifying Engine Sensors And Components (1 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

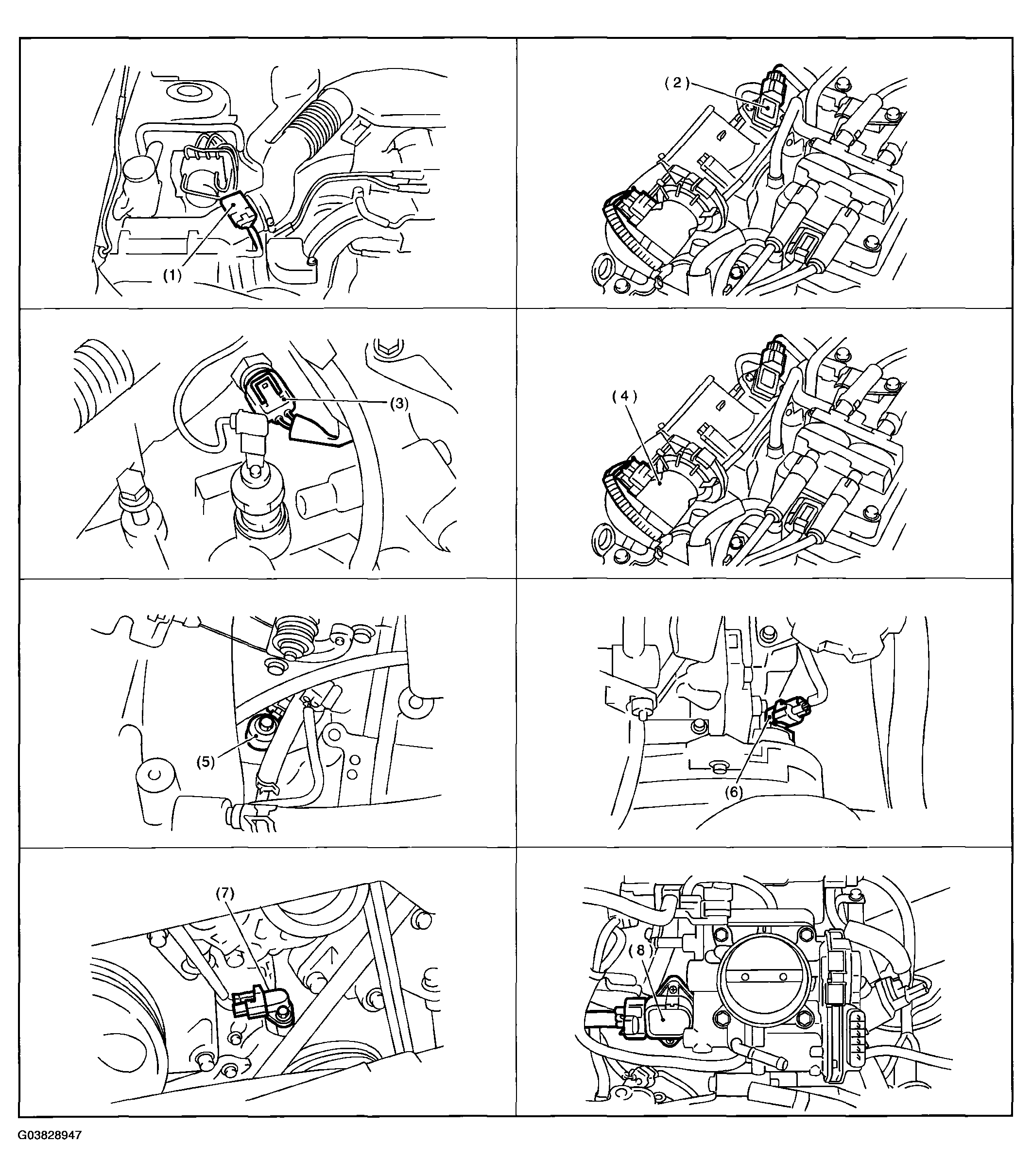

  Fig 3: Identifying Engine Sensors And Components (2 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

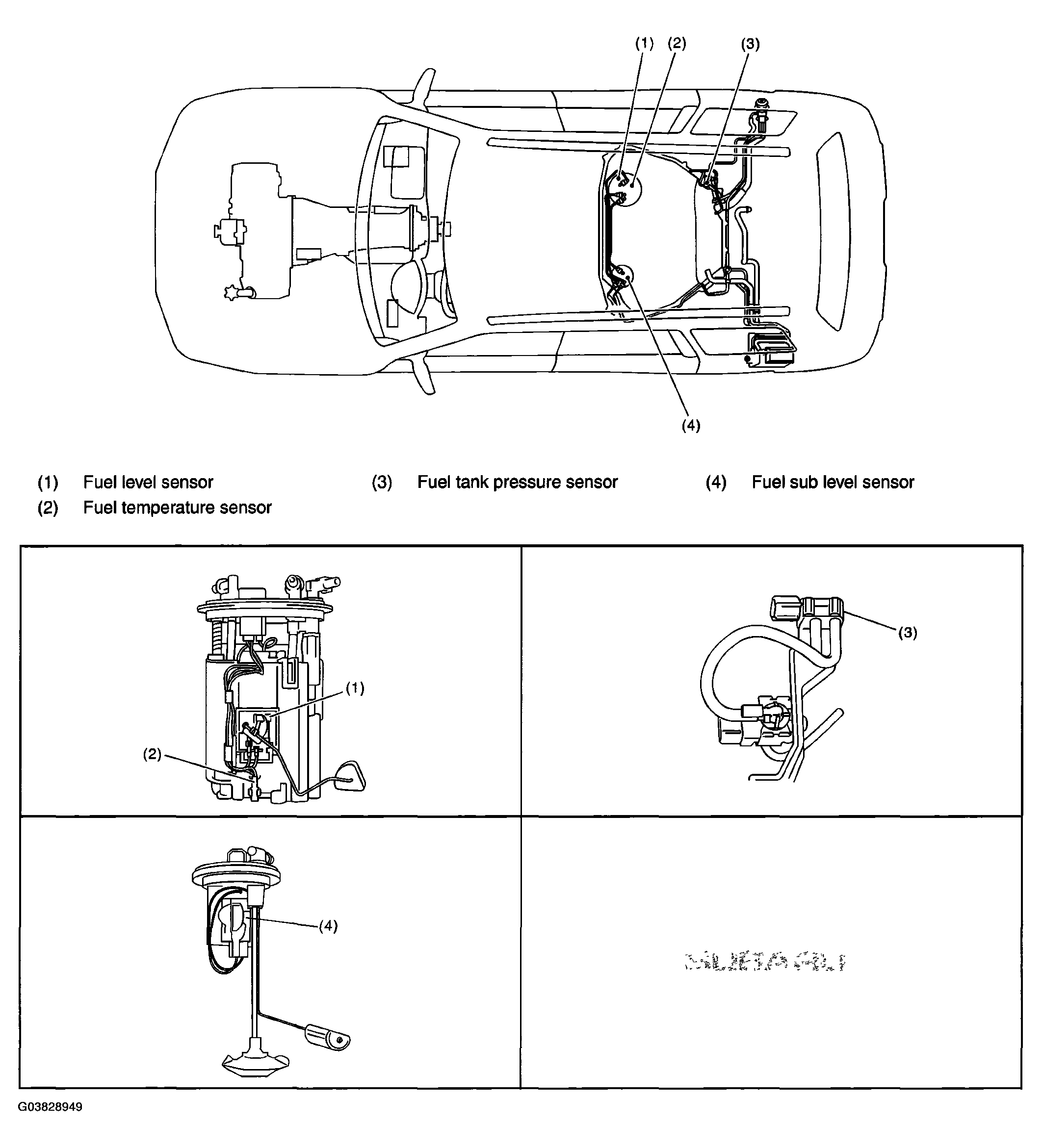

  Fig 4: Identifying Engine Sensors And Components (3 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.
  Fig 5: Identifying Engine Sensors And Components (4 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.
• Solenoid valve, actuator, emission control system parts and ignition system parts

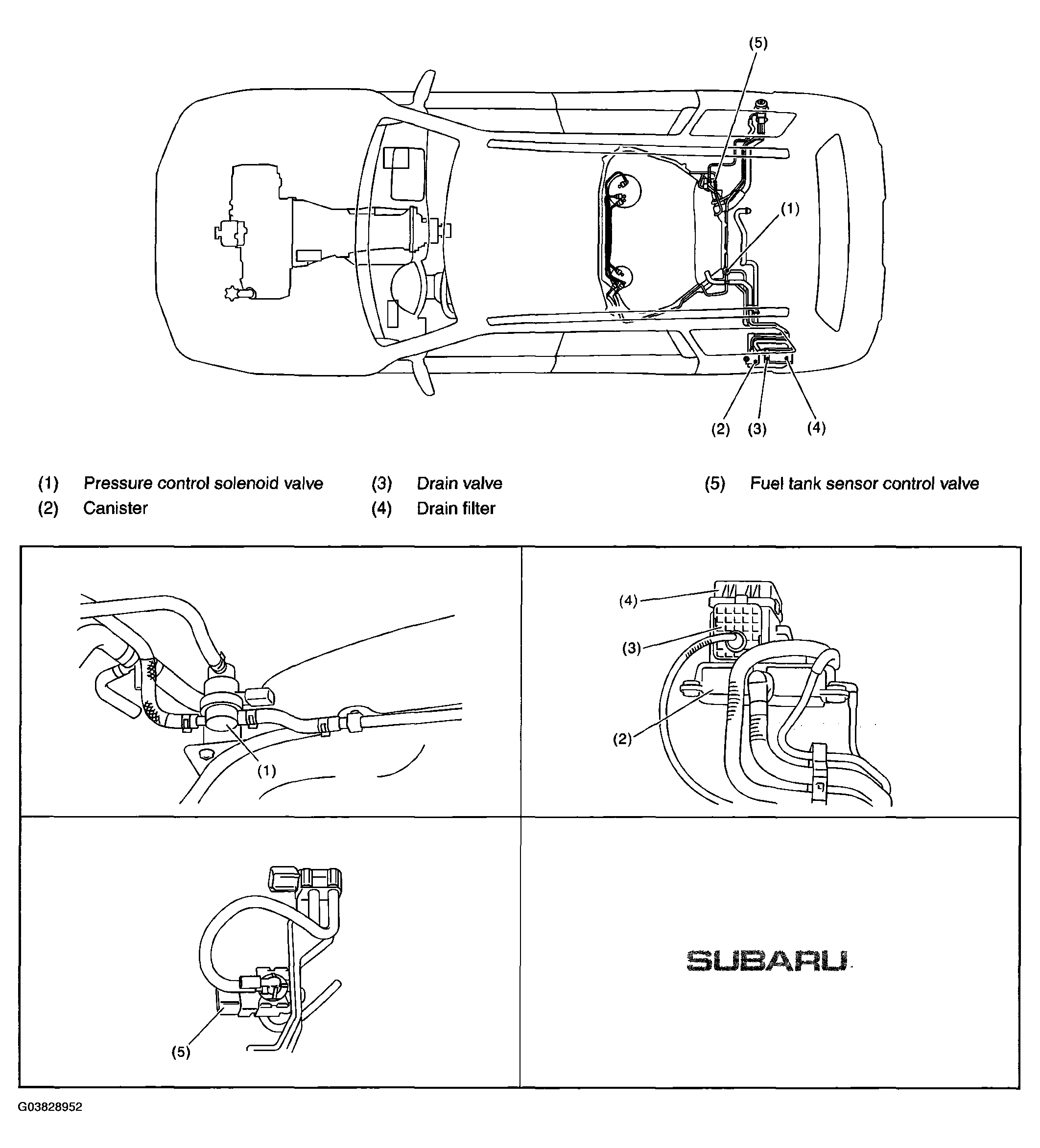

Fig 6: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

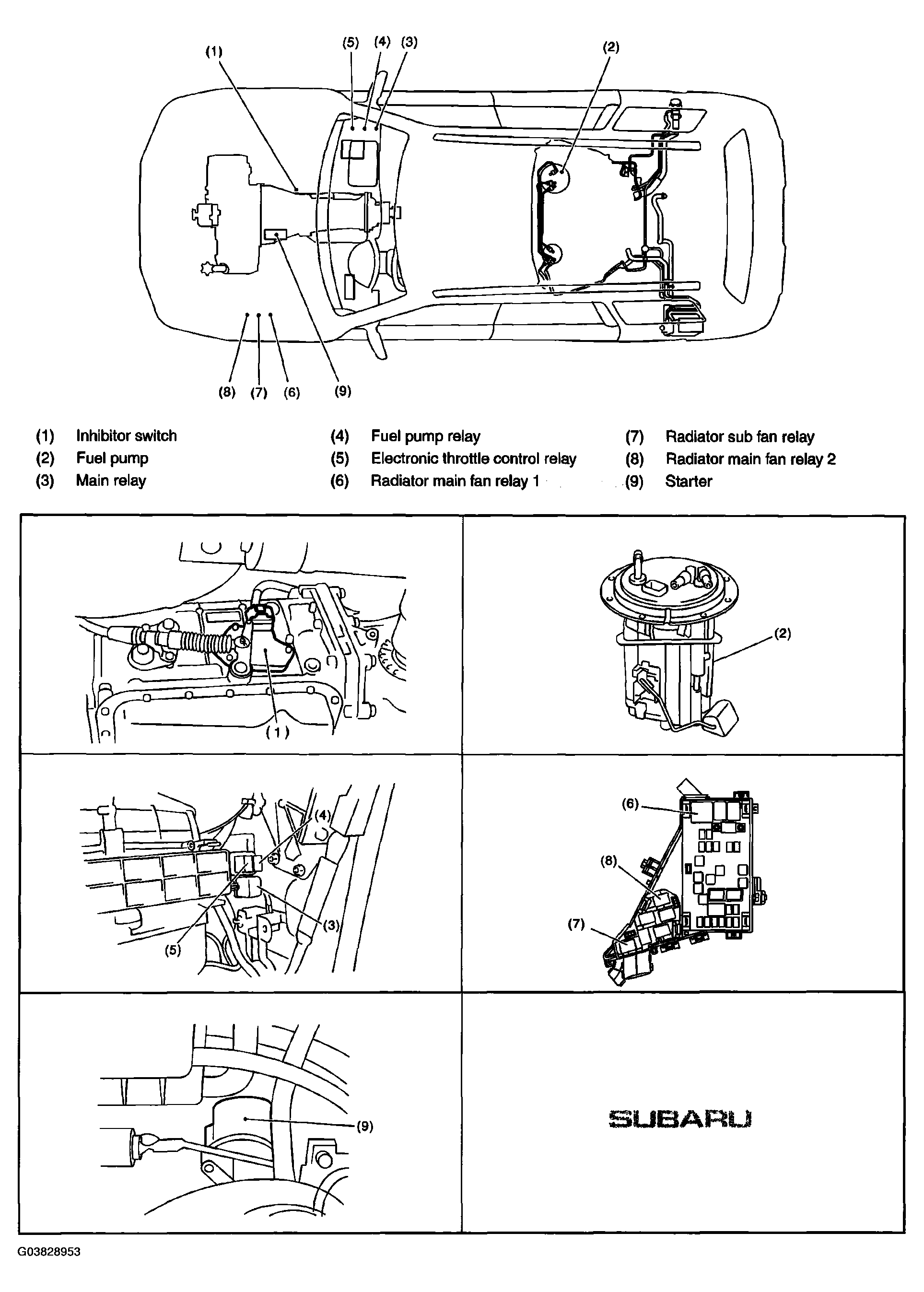

Fig 7: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

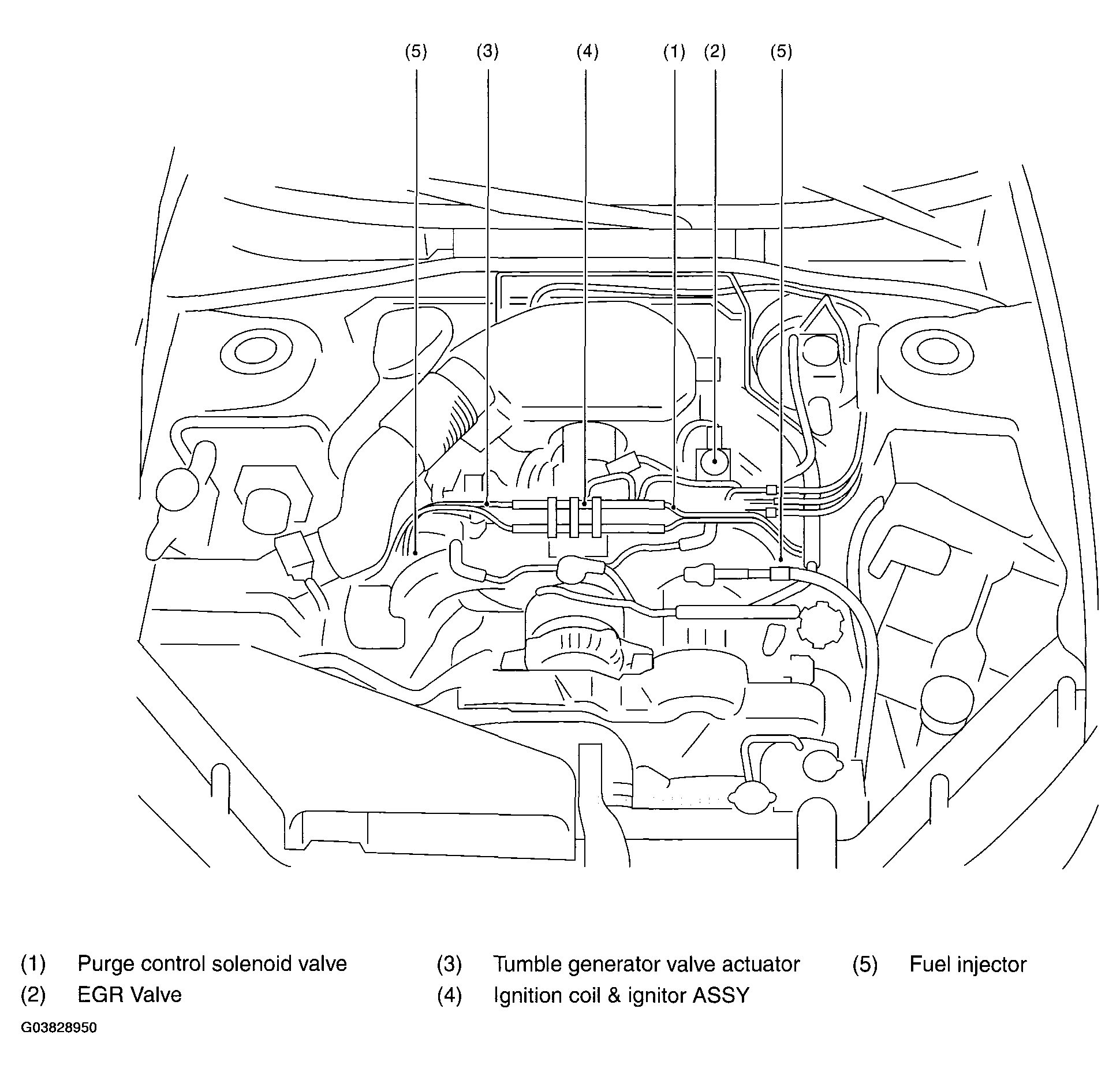

Fig 8: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

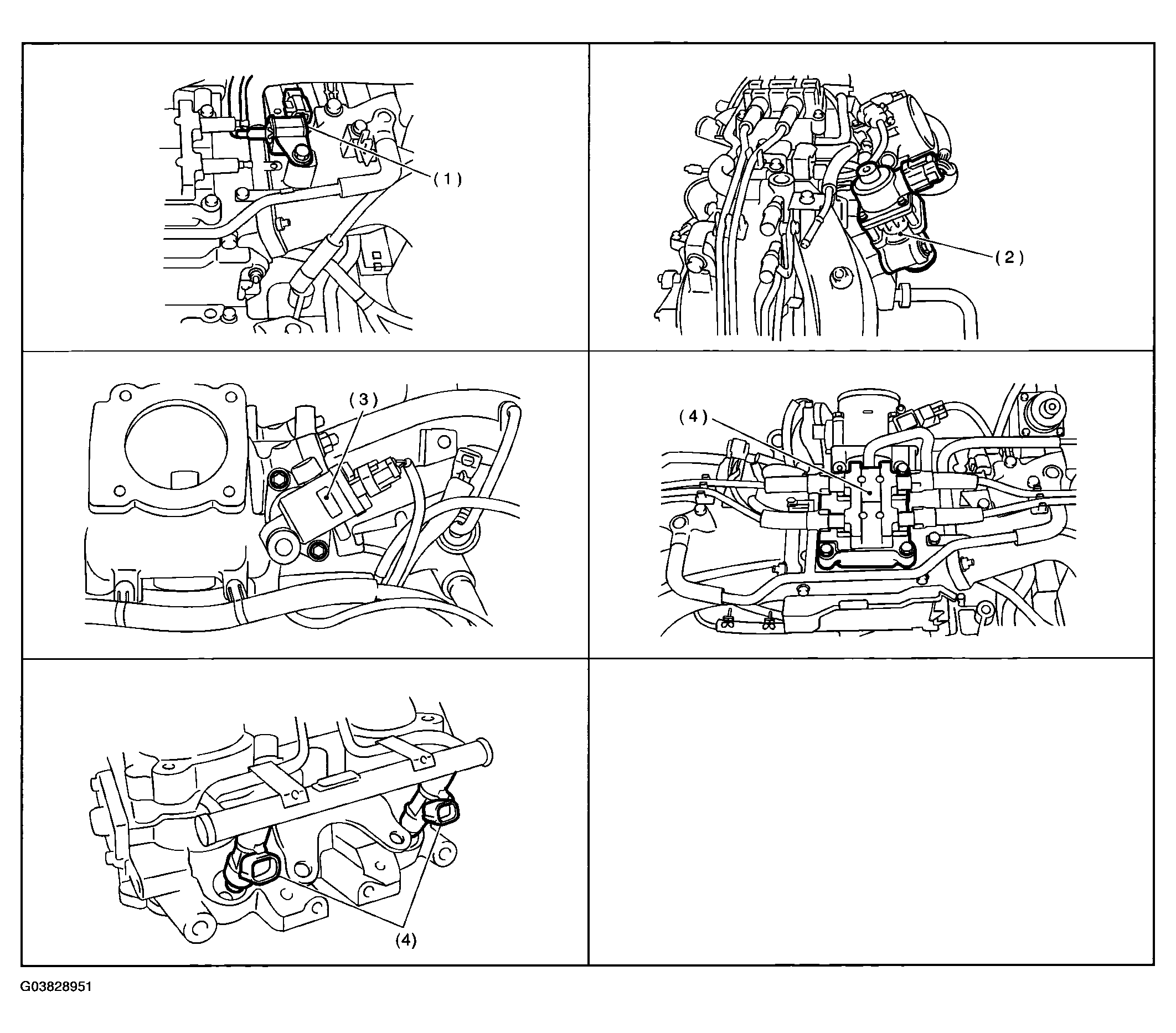

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
