Home >> Subaru >> 2005 >> Outback i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Engine (Diagnostics) (H4SO U5 (PZEV)) >> Diagnostics for Engine Starting Failure >> Procedure

Diagnostics for Engine Starting Failure: Procedure

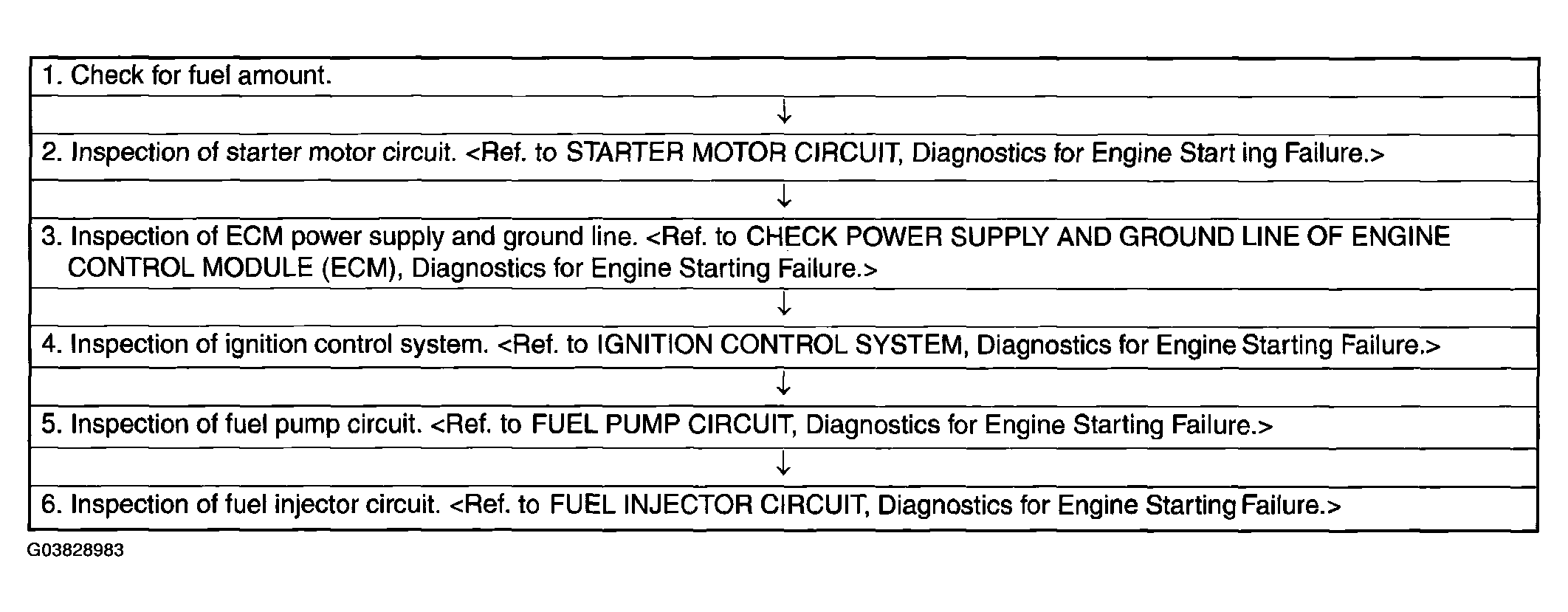

Fig 1: Engine Starting Failure Flow Chart

G03828983

Courtesy of SUBARU OF AMERICA, INC.
