Front Oxygen (A/F) Sensor: Removal

Disconnect the ground cable from battery.

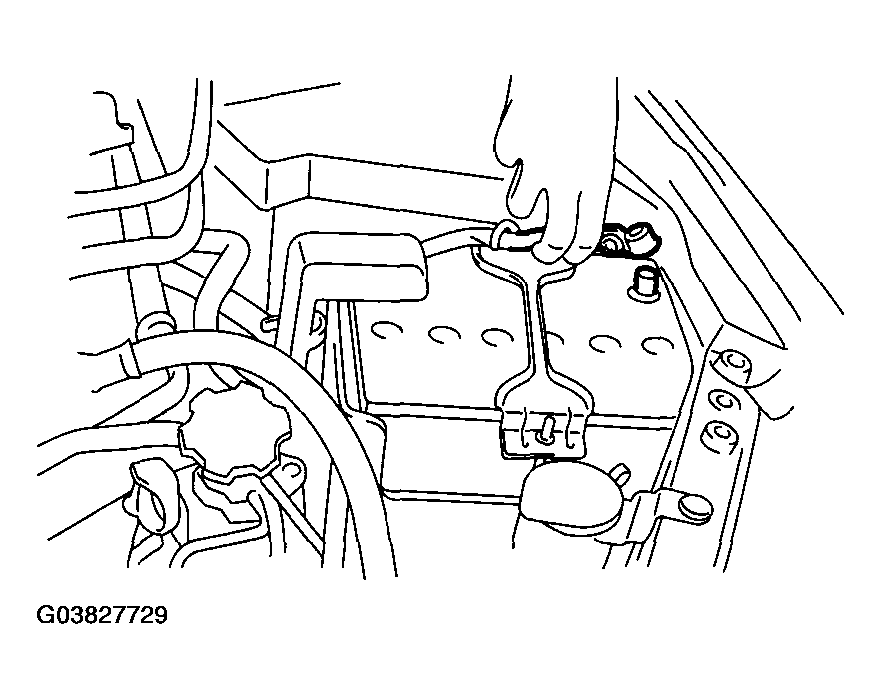

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the front oxygen (A/F) sensor connector.
NOTE: Remove the harness from bracket.

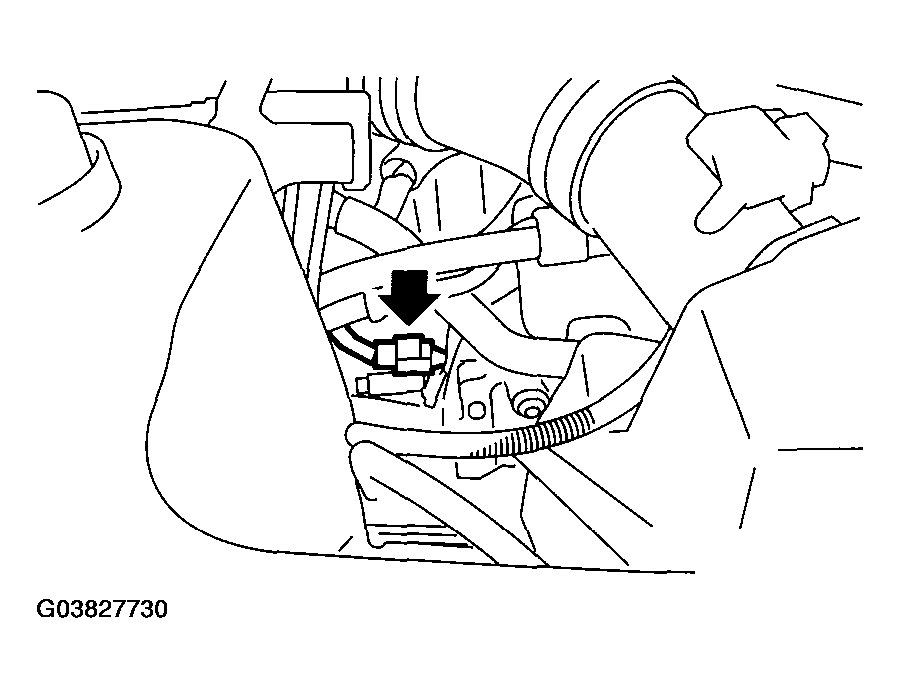

Fig 2: Disconnecting Front Oxygen (A/F) Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Apply spray-type lubricant to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
Remove the front oxygen (A/F) sensor.

CAUTION: When removing the oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.

Fig 3: Removing Front Oxygen (A/F) Sensor

Courtesy of SUBARU OF AMERICA, INC.
