Function Check

In order to check the body integrated unit function, inspect the body integrated unit and actuator using Subaru Select Monitor without operating switches.

On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Integ. Unit mode} and press the [YES] key.
On the << Integ. Unit mode failure diag >> display screen, select the {System Operation Check Mode} and press the [YES] key.
Select item to operate on the << System Operation Check Mode >> display screen with "UP/Down key", and press the [YES] key.

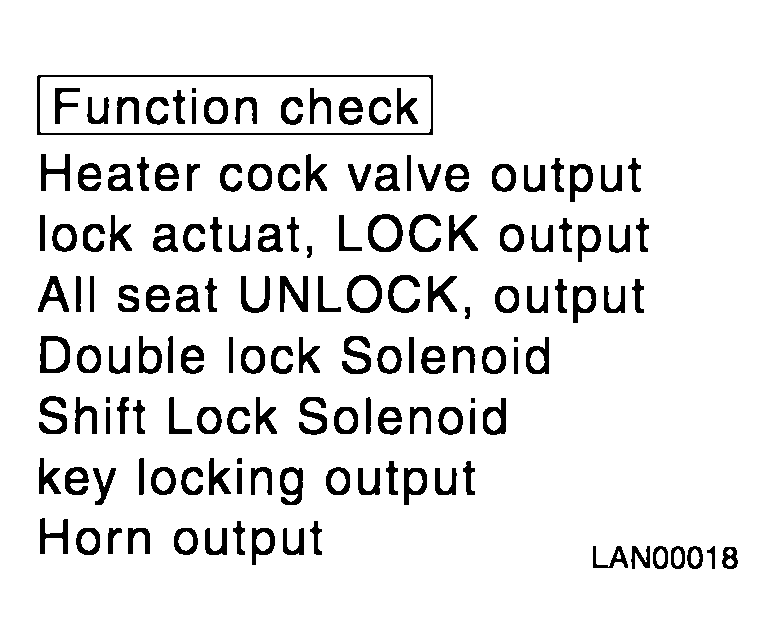

Fig 1: Identifying Screen Display -Function Check
Courtesy of SUBARU OF AMERICA, INC.
Pressing [YES] starts, [NO] cancels the operation and [YES] returns to the System Operation Check Mode display screen.

NOTE: If not equipped (based on area or condition), process will not go on.
