Home >> Subaru >> 2005 >> Outback i, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> LAN System (Diagnostics) >> Control Module I/O Signal >> Wiring Diagram

Control Module I/O Signal: Wiring Diagram

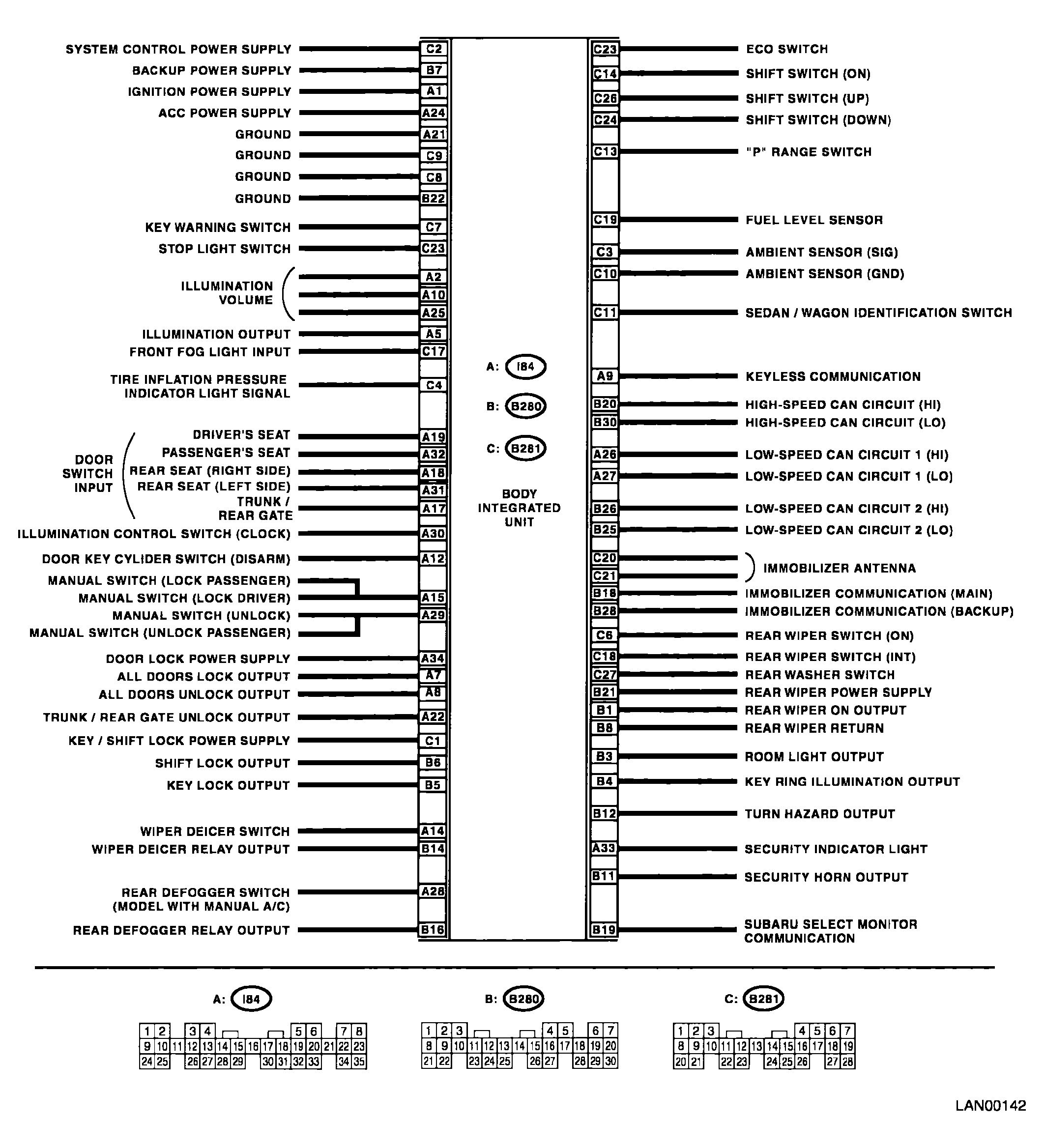

Fig 1: Control Module Wiring Diagram

G04587407

Courtesy of SUBARU OF AMERICA, INC.
