AT Shift Lock Control System: Wiring Diagram

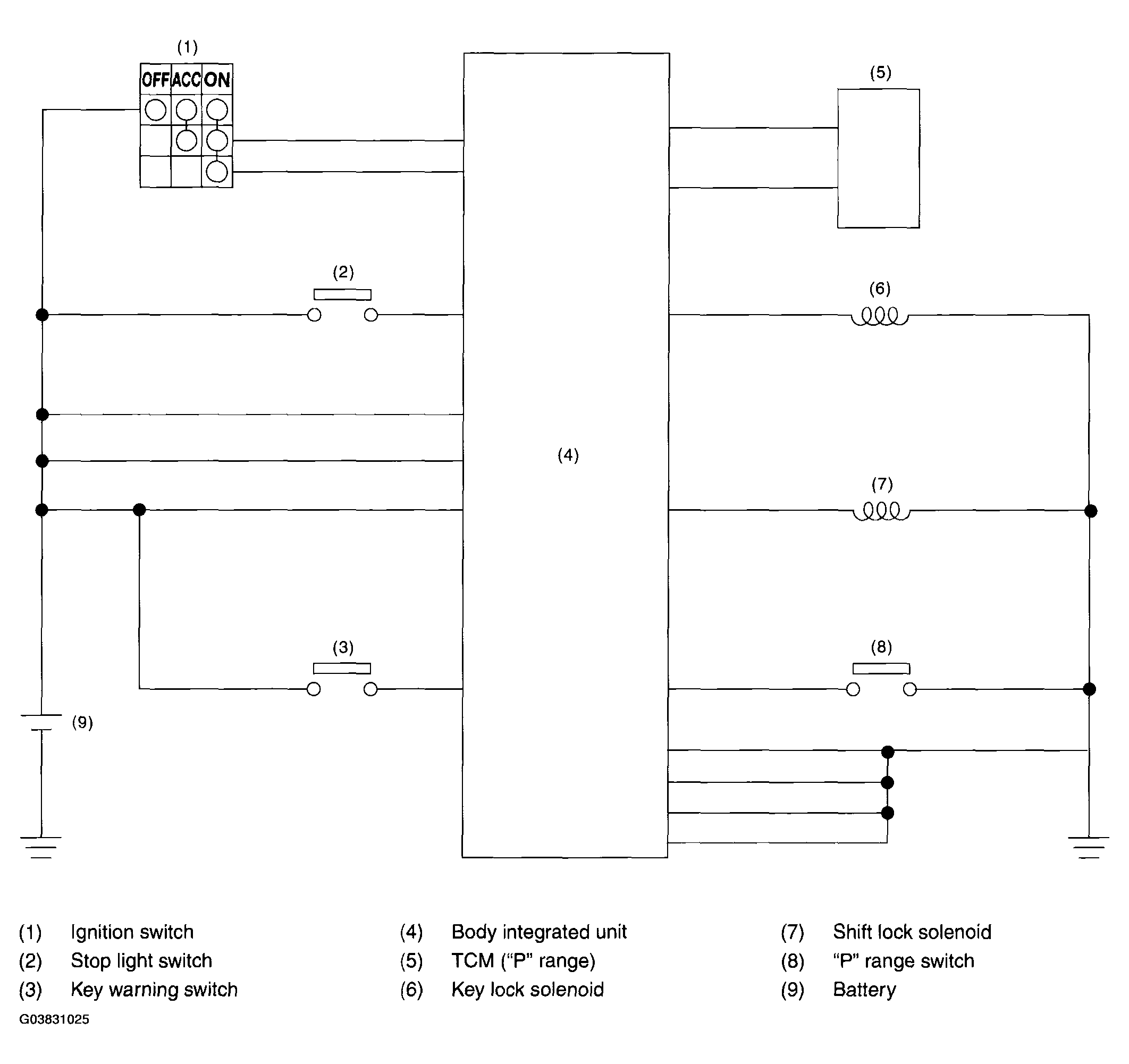

Fig 1: Shift Lock - Wiring Diagram

G03831025

Courtesy of SUBARU OF AMERICA, INC.
