Operating Cylinder: Removal

  1. Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
  2. Disconnect the clutch hose from operating cylinder.
    CAUTION: Cover the hose joint to prevent clutch fluid from flowing out.

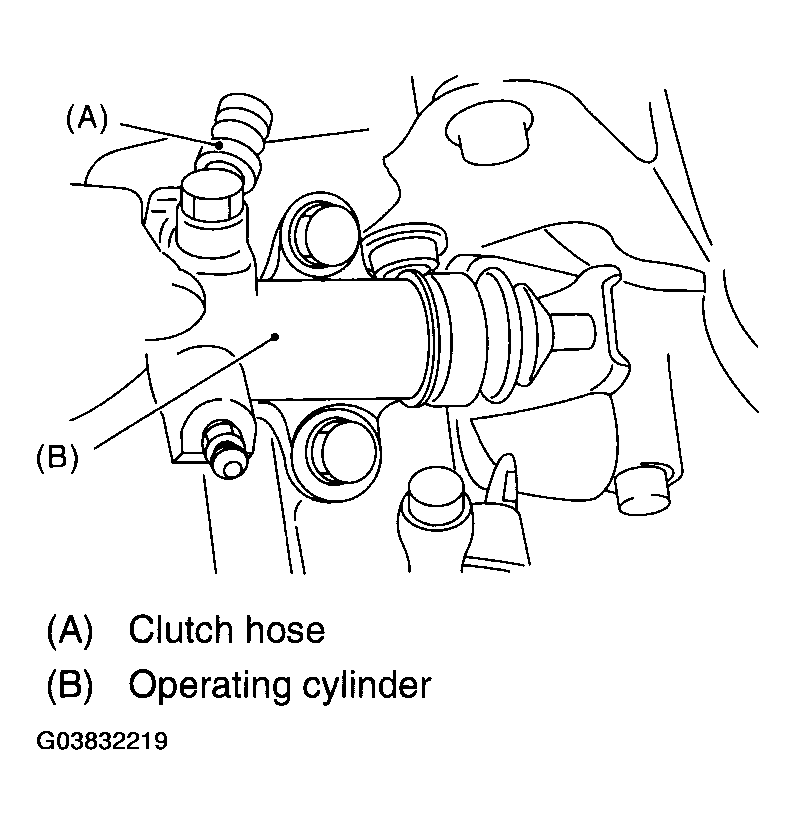

    Fig 1: Disconnecting Clutch Hose From Operating Cylinder
    G03832219Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the operating cylinder from transmission.

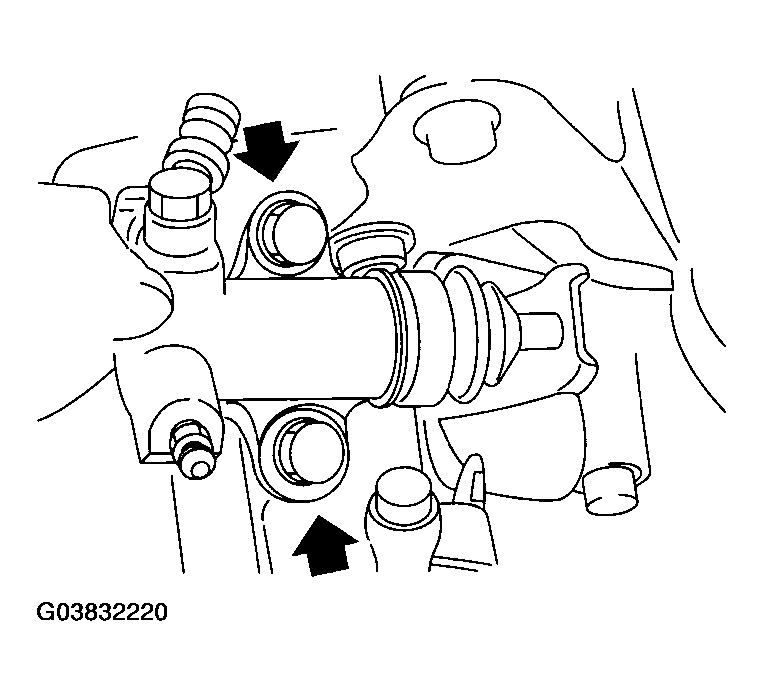

    Fig 2: Removing Operating Cylinder From Transmission
    G03832220Courtesy of SUBARU OF AMERICA, INC.
