Master Cylinder: Installation

Install the master cylinder to vehicle, and connect the clutch pipe to master cylinder.
NOTE: Check that the pipe is routed properly.

Tightening torque:

T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

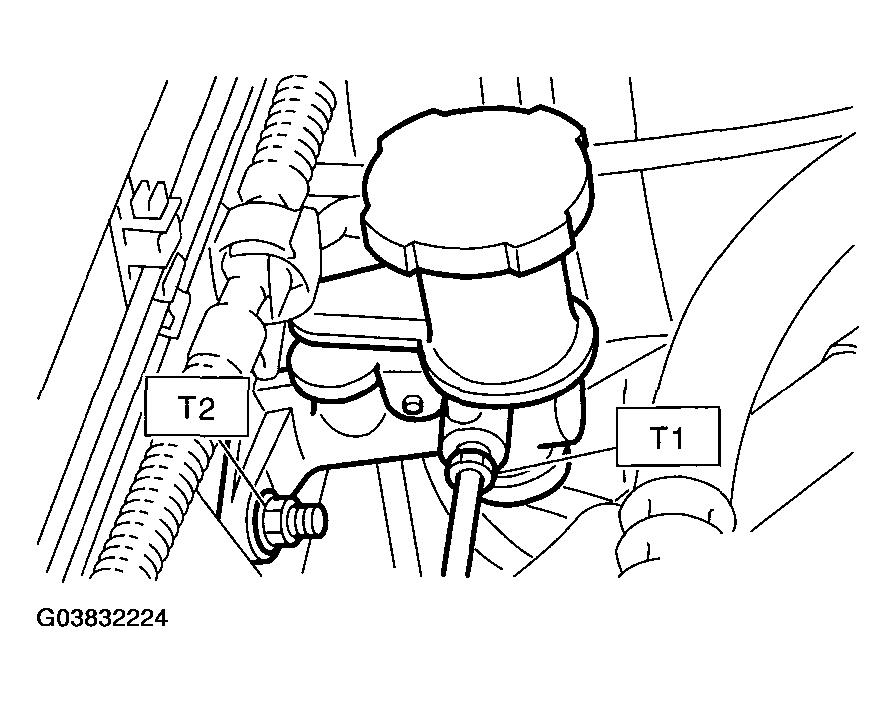

Fig 1: Installing Master Cylinder To Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Connect the push rod of master cylinder to clutch pedal, and install the clevis pin and snap pin.
NOTE: Apply grease to the clevis pin.

Fig 2: Applying Grease To Clevis Pin
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the clutch system, ensure that clutch operates properly. < Ref. to , CLUTCH FLUID AIR BLEEDING . >
Install the air intake chamber. < Ref. to INSTALLATION , Air Intake Chamber. >
